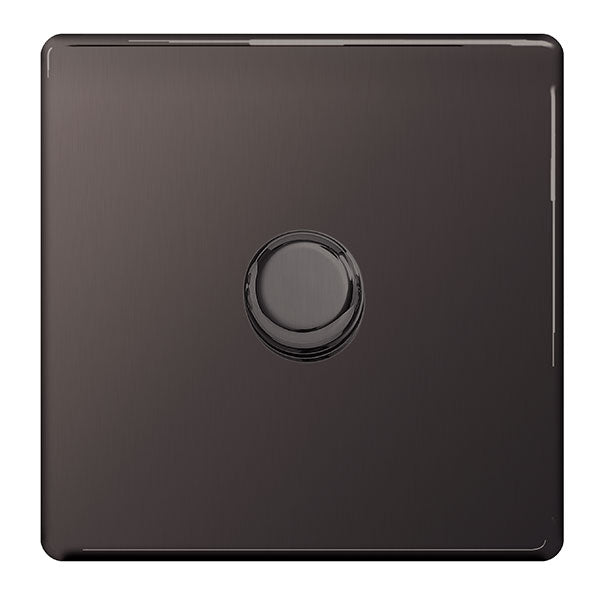

BG FBN81P Screwless Flatplate Black Nickel 400W Single Dimmer Switch, 2-Way Push On-Off
Product Description
This leading edge single dimmer switch allows you to control your light levels and set the mood.
Suitable for use with compact flourescent lamps (CFL) and LED dimming, the dimmer has an adjustable minimum level feature which can be used to adjust the lighting output at a low level to stabilise the load.
The screwless clip on/off front plate has a brushed steel finish with anti-fingerprint lacquer and sits flush against the wall, making it ideal for modern interiors.
Technical Details
| Standard(s): |
BS EN 60669-2-1 |
| ASTA Approval: | License Number 1019 |
| Rating: | 13 Amp 250V~ |
| Contact gap: | 3.0mm minimum |
| Load Rating (Max/Min per module: Tungsten lamp | 60-400W |
| Load Rating (Max/Min per module: Halogen lamp(Mains Voltage) | 50-400W |
| Load Rating (Max/Min per module: Halogen lamp(Low Voltage, 12V) | 23-350W |
| Load Rating (Max/Min per module: Dimmable LED | 5-50W |
| Load Rating (Max/Min per module: Dimmable Compact Fluorescent (CFL) |
10-100W |
| Terminal Capacity: | 3 x 1mm ² 2 x 1.5mm ² 1 x 2.5mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 25mm |
| Fixing Centres: | 60.3mm |
| Size: | 87.4mm x 87.4mm x 41.2mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Adjust your light level for mood setting as well as energy saving with 2 way on/off
-
Leading edge dimmer suitable for use with compact flourescent lamps (CFL) and LED dimming
-
2 way switching allows for a second switch position in a circuit
-
Screwless front plate clips on and off easily and has a sleek flat profile
-
Moisture control gasket, prevents tarnishing from new plaster
-
Adjustable minimum level feature which can be used to adjust the lighting output at a low level to stabilise the load
-
Twin earth fitted as standard for high integrity circuits
-
Anti-fingerprint lacquer to reduce unsightly fingerprints
Specification
Finish ii |
Black Nickel |
Gtin |
5050765007030 |
Insert colour |
White |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Screwless |
Yes |
Unit colour |
Black |
Unit size |
1 Gang |
Wiring accessory type |
Dimmer |
