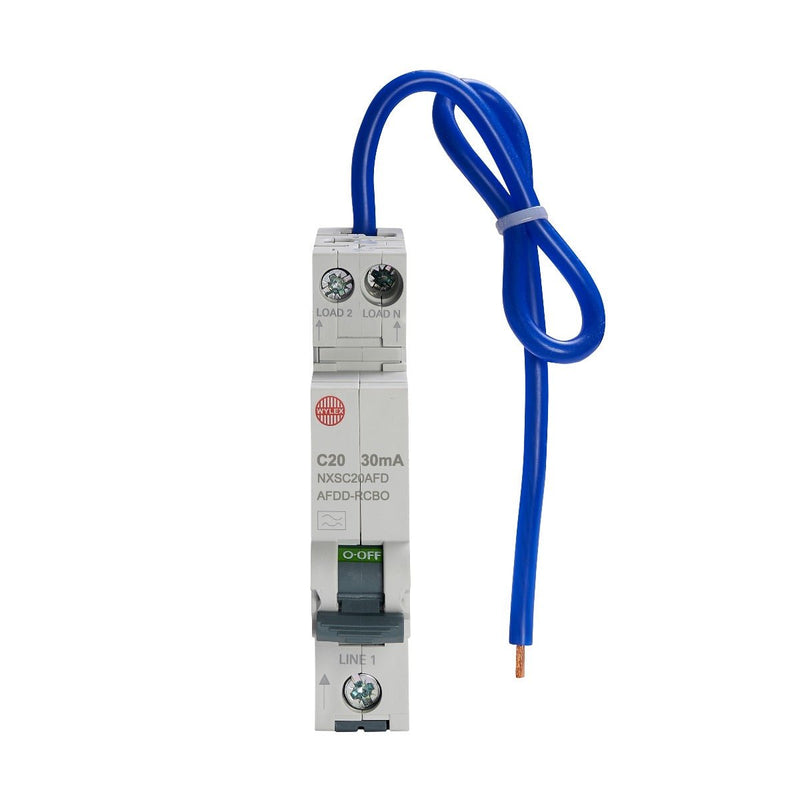

20A, 30mA 1P w- Swi. Neutral C Curve 6kA Type A Mini. AFDD RCBO - Wylex NXSC20AFD

20A, 30mA 1P w- Swi. Neutral C Curve 6kA Type A Mini. AFDD RCBO - Wylex NXSC20AFD


Sale price£72.07For 1
£86.48 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

20A, 30mA 1P w- Swi. Neutral C Curve 6kA Type A Mini. AFDD RCBO - Wylex NXSC20AFD

Product Details

  • Rated current: 20A

  • 6kA Type A Miniature AFDD RCBO

  • Single module, Miniature AFDD/RCBO combined

  • C curve (MCB), 30mA Type A (RCD)

  • Single pole with switched neutral

  • No miss busbar connection

  • Fits NM & NMX consumer units

  • Single pole with switched neutral

  • No miss busbar connection

  • Fits NM & NMX consumer units

  • Number of poles (total): 2

  • Number of protected poles: 1

  • Rated voltage: 230 V

  • Rated insulation voltage Ui: 400 V

  • Rated impulse withstand voltage Uimp: 4 kV

  • Rated fault current: 0.03A

  • Leakage current type: A

  • Current limiting class: 3

  • Rated short-circuit breaking capacity Icn acc. EN 61009-1: 6 kA

  • Disconnection characteristic: Undelayed

  • Voltage type: AC

  • Frequency: 50 Hz

  • Release characteristic: C

  • Concurrently switching N-neutral: Yes

  • With interlocking device: No

  • Over voltage category: 3

  • Ambient temperature during operating: -5 - +40 °C

  • Width in number of modular spacings: 1

  • Built-in depth: 73 mm

Specification

Gtin

5013601106717

Product type

RCD Units
