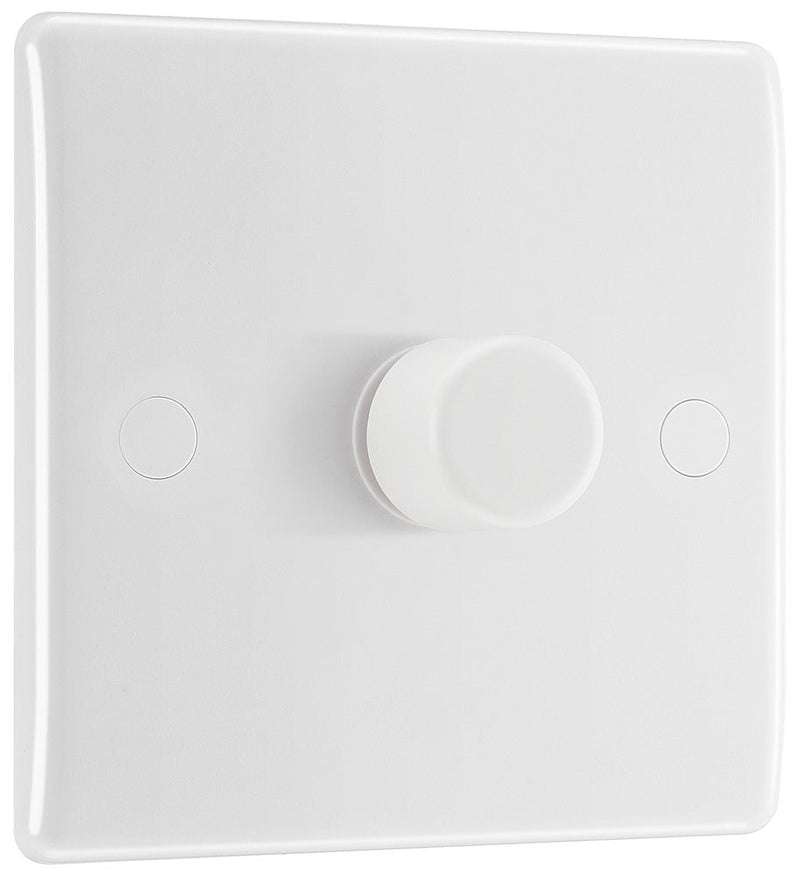

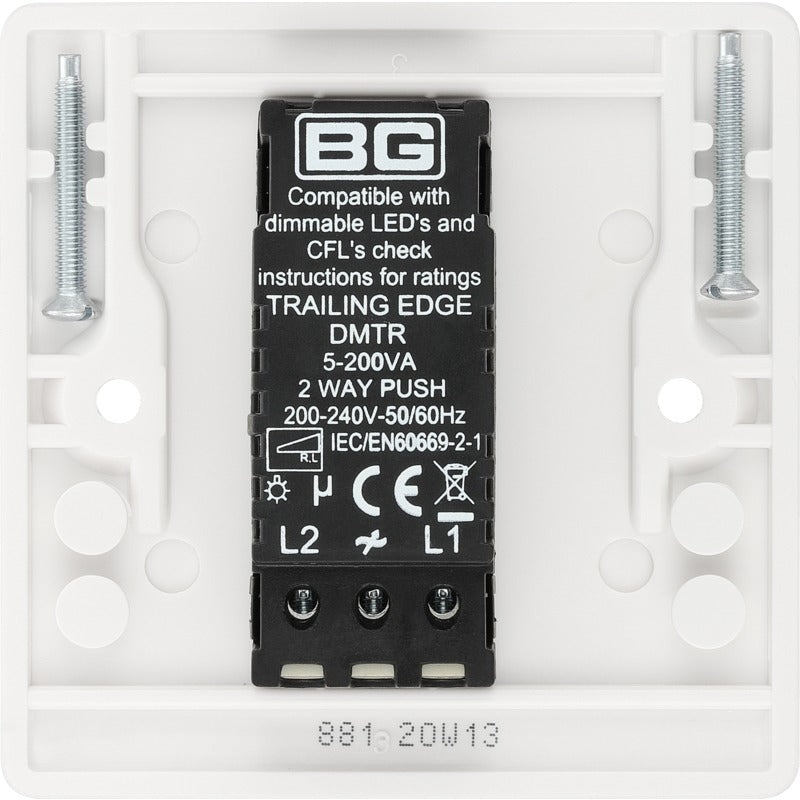

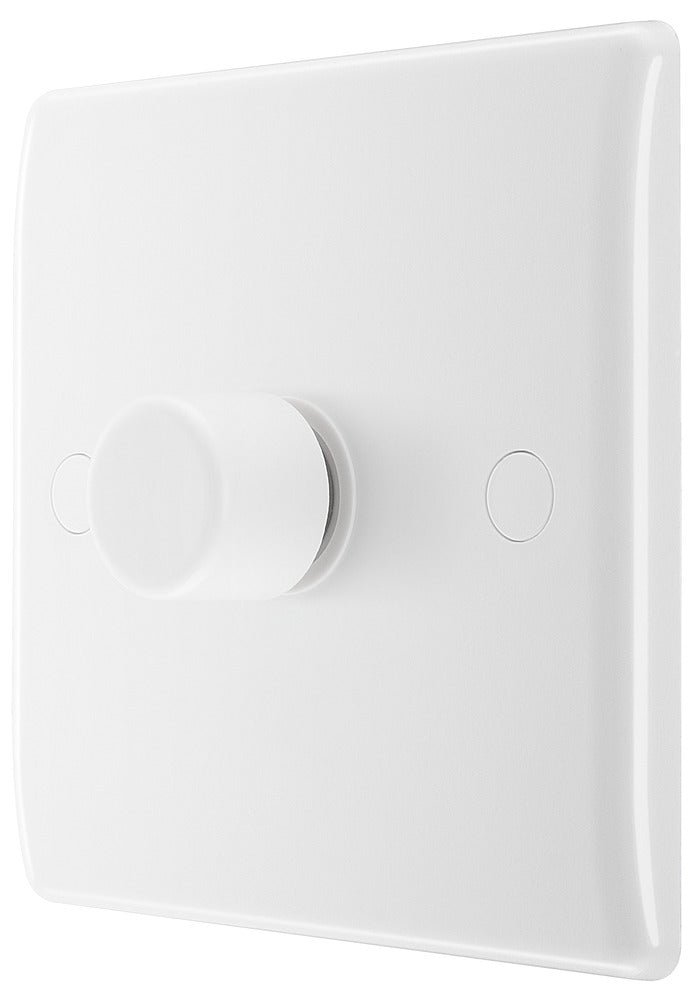

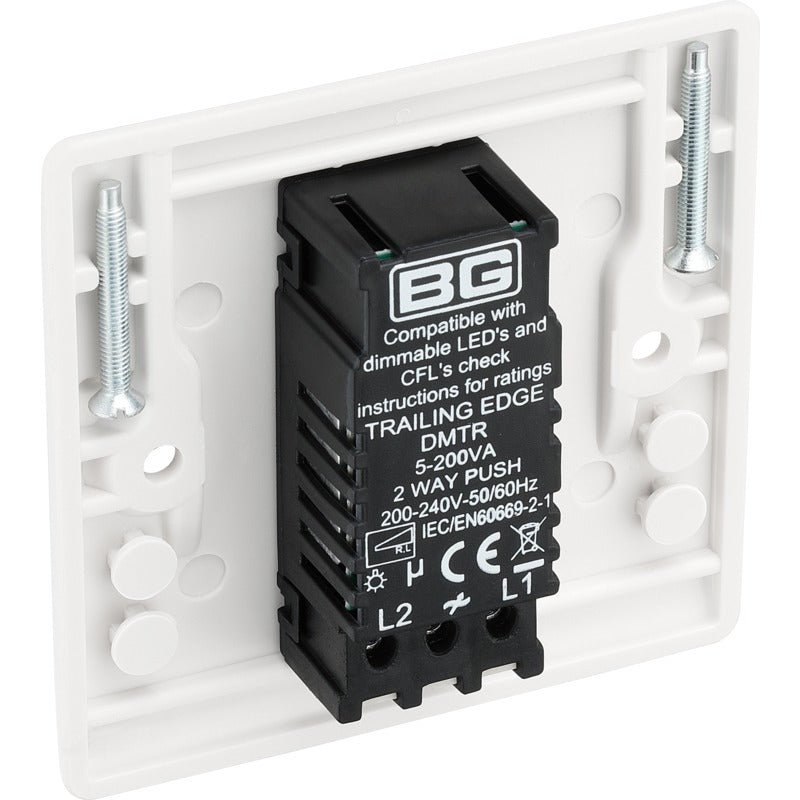

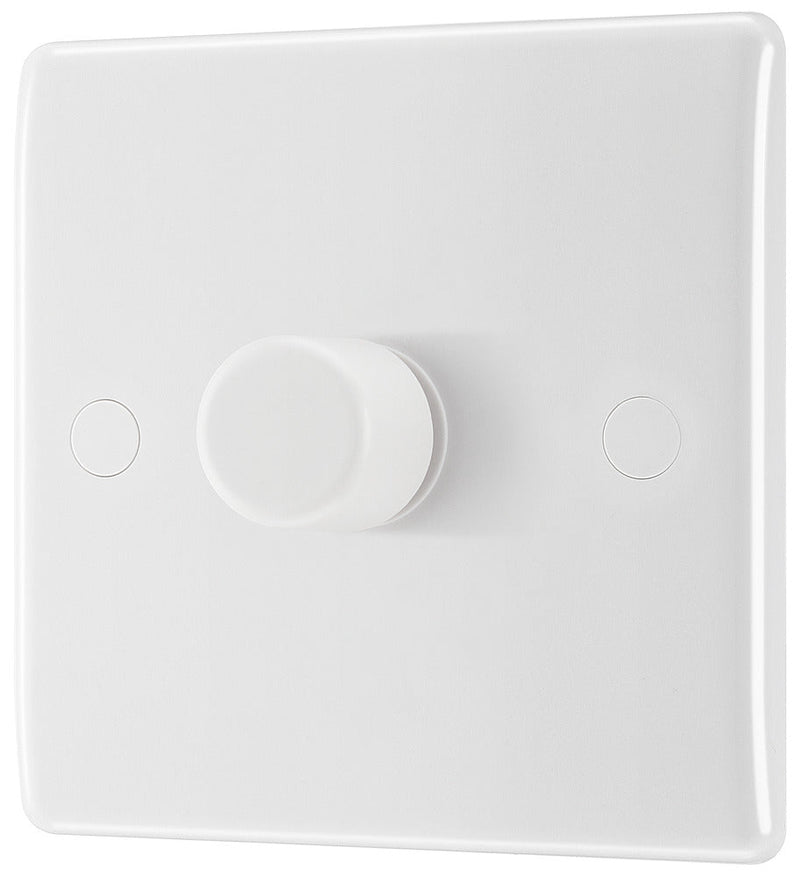

BG 881 Nexus White Moulded Intelligent 400W 1-Gang Dimmer Switch, 2-Way Push On-Off
Product Description
- Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
- Soft start brings the lights to a set level in around 1 second and extends the life of lamps
- Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
- Smooth dimming control
- Silent operation - no noise when dimming
- Support for lower wattage lamps eliminates flicker
- Rotary dimmer control with push on/off function
- Produced in white moulded urea material with inherent anti-microbial properties
- Screw cover caps for a sleek appearance
Technical Details
| Standard(s) | BS EN 60669-2-1 |
| Asta Approval | License Number 1019 |
| Voltage | 200-250V AC |
| Load Rating (Max/Min per module | |
| Dimmable LED | 5-100W |
| Tungsten/Incandescent | 5-200W |
| Halogen | 20-200W |
| Dimmable Compact Flourescent (CFL) | 5-100W |
| Type | Trailing Edge |
| Terminal Capacity | 3 x 1mm ² 2 x 1.5mm ² 1 x 2.5mm ² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |
| Fixing Centres | 60.3mm |
| Size | 86mm x 86mm x 45mm |
Specification
Finish ii |
White Plastic |
Gtin |
5050765002592 |
Insert colour |
White |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Regulatory |
BS EN 60669-2-1 |
Screwless |
No |
Switched |
No |
Unit size |
1 Gang |
Wiring accessory type |
Dimmer |
