SPECIFY RCBO SIZE IN THE BOX ABOVE

PRODUCT DETAILS:

Bundle offer includes:

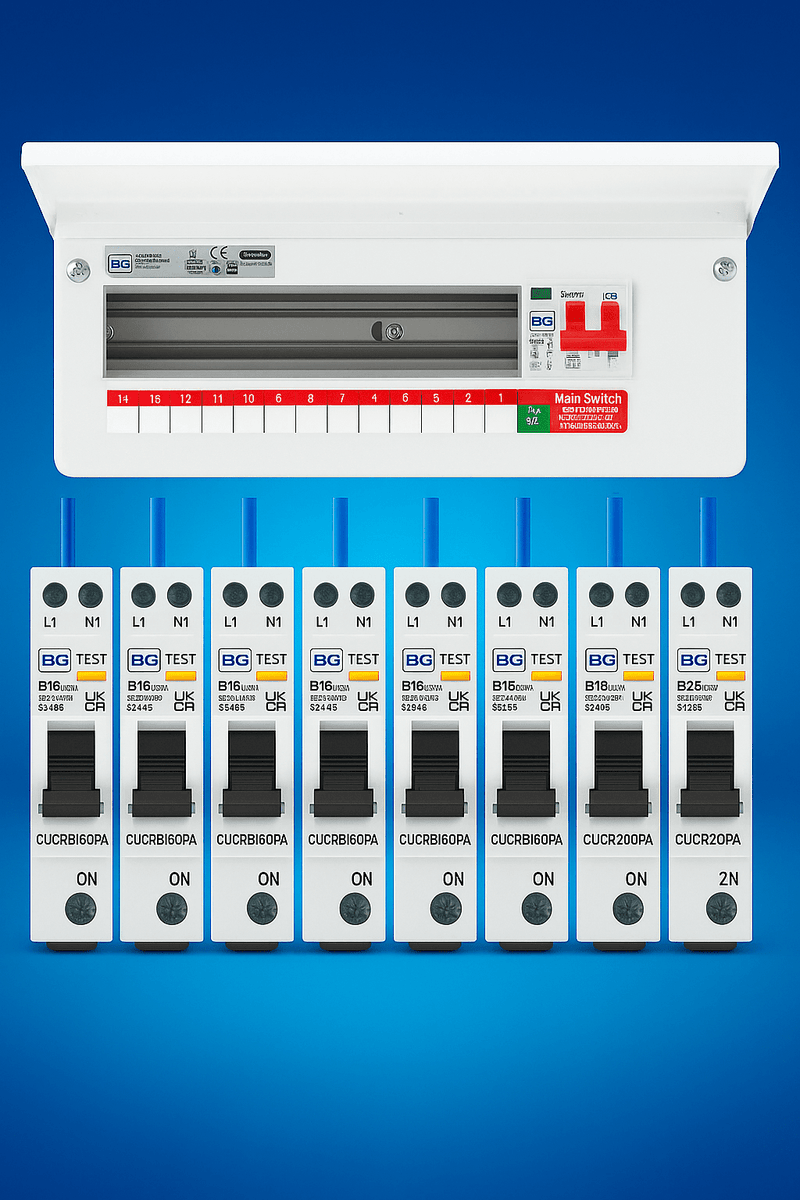

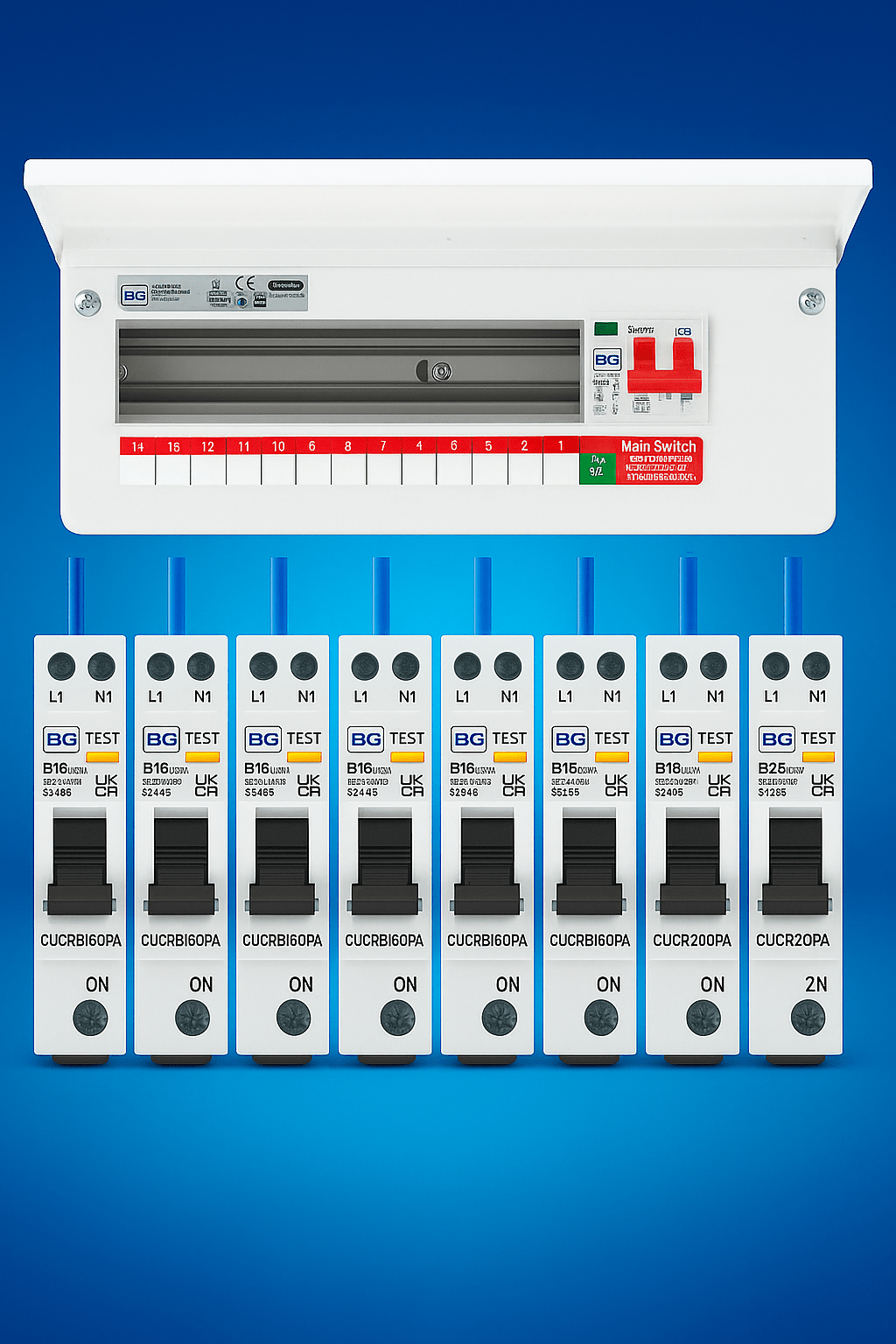

• BG CF16MS13 13- Usable ways consumer unit with a 100A main switch

• 10, 6kA CUCRB-- Bi-directional RCBOs (Choose RCBOs using the text box above)

• Surge protection device

Technical Details:

• 100A main switch (fitted)
• Type 2 SPD - 1 module (pre-wired)
• Integrated spirit level
• Large rear knockouts (2 rows)
• Optional cable clamp included
• 13 way
• 40mm knockouts in sides, top and base
• Backed out and retained terminal screws
• Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 2 x grommet strip and 2 x cover blanks
• Front Plate Material: Steel 1.0mm - ST16
• General Colour: White
• Fixing Screws Supplied : No
• Modules: 16
• Number of Cable Entries: 24
• Captive Terminal Screws: Yes
• Backed-out Terminal Screws: Yes
• Cable Entry Type: Knockout
• Details per face (Size/number): Top - 2 x 20mm, 1 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 2 x 20mm, 1 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x32mm 1 x 40mm (sides) 4 x 100 x 50mm (Base)
• Number Of Wall Fixing Positions: 5
• Fitted Lock : no
• Installation Method(s): Surface
• Spirit Level : Yes
• Terminal Type: Screw
• Ways : 13
• Knockouts: 24
• IP Rating : IP2XC
• MCB's : 0
• Terminal Screw Type : Combi
• Terminal Torque (Nm): Earth/Neutral Terminals 2Nm, MS 2.5Nm, SPD 1.2Nm L/N 3Nm PE
• RCD Mechanism Type : N/A
• Height: 231 mm
• Width: 388.40 mm
• Depth: 116 mm
