BG FBN43 Screwless Flatplate Black Nickel Triple Switch, 10Ax 2 Way
Product Description

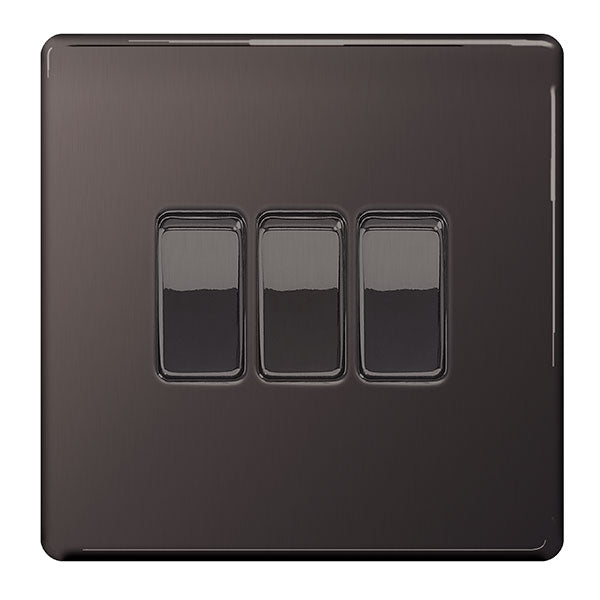

This black nickel finish 10A triple light switch can operate 3 different lights, whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs).
This switch has a screwless flatplate with an anti-fingerprint lacquer that clips on and off and sits flush against the wall, making it ideal for modern interiors.
Technical Details
| Standard(s): |
BS EN 60669-1 |
| Rating: | 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads) |
| Contact gap: | 3.0mm minimum |
| Terminal Capacity: | 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 16mm |
| Fixing Centres: | 60.3mm |
| Size: | 87.4mm x 87.4mm x 25.5mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
2 way switching allows for a second switch position in a circuit
-
Screwless front plate clips on and off easily and has a sleek, flat profile
-
Moisture control gasket, prevents tarnishing from new plaster
-
No visible plastic around switches
-
Captive, backed out terminal screws for fast installation and to prevent screw loss
-
Minimum mounting box depth 16mm
-
Anti-fingerprint lacquer reduces unsightly fingerprints
Specification
Finish ii |
Black Nickel |
Gtin |
5050765006729 |
Internal external |
Internal |
Product type |
Wiring Accessories |
Screwless |
Yes |
Switched |
Yes |
Unit colour |
Black |
Unit size |
1 Gang |
Wiring accessory type |
Switch |
