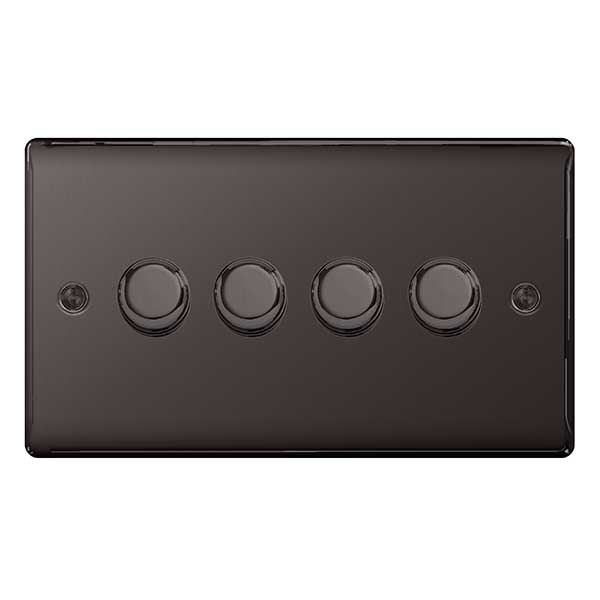

BG FBN84 Screwless Flatplate Black Nickel Intelligent 400W 4-Gang Dimmer Switch, 2-Way Push On-Off
Product Description
- Fixed integrated plastic gasket to protect metal edges from moisture
- Under 5mm thick
- Flat profile with rounded edges
- Available in 4 metal finishes
- Secure easy "Clip on, Clip off" frontplate design
- Suitable for compact fluorescent lamps(CFL) and LED Dimming
- There can be issues with dimming CFL and LED lamps at a low lighting level. The Nexus dimmer products have an adjustable minimum level feature which can be used to adjust the lighting output at a low level, to stabilise the load.
Technical Details
| Standard(s) | BS EN 60669-2-1 |
| ASTA Approval | License Number 1019 |
| Voltage | 200-250V AC |
| Load Ratings(Max/Min per module) | |
| Tungsten lamp | 60-400W |
| Halogen lamp(Mains Voltage) | 50-400W |
| Halogen lamp(Low Voltage, 12V) | 35-350W |
| Dimmable LED | 5-50W |
| Dimmable Compact Fluorescent (CFL) | 10-100W |
| Type | Leading Edge |
| Terminal Capacity | 3 x 1mm ² 2 x 1.5mm ² 1 x 2.5mm ² |
| RoHS Directive | No |
| WEEE Directive | No |
| Mounting Box Depth (min) | 25mm |
| Fixing Centres | 120.6mm |
| Size | 146.5mm x 86mm x 41.2mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Adjust your light level for mood setting as well as energy saving with 2 way on/off
-
Leading edge dimmer suitable for use with compact flourescent lamps (CFL) and LED dimming
-
2 way switching allows for a second switch position in a circuit
-
Screwless front plate clips on and off easily and has a sleek flat profile
-
Moisture control gasket, prevents tarnishing from new plaster
-
Adjustable minimum level feature which can be used to adjust the lighting output at a low level to stabilise the load
-
Twin earth fitted as standard for high integrity circuits
-
Anti-fingerprint lacquer to reduce unsightly fingerprints
Specification
Finish ii |
Black Nickel |
Gtin |
5050765007061 |
Insert colour |
White |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Screwless |
Yes |
Unit size |
2 Gang |
Wiring accessory type |
Dimmer |
