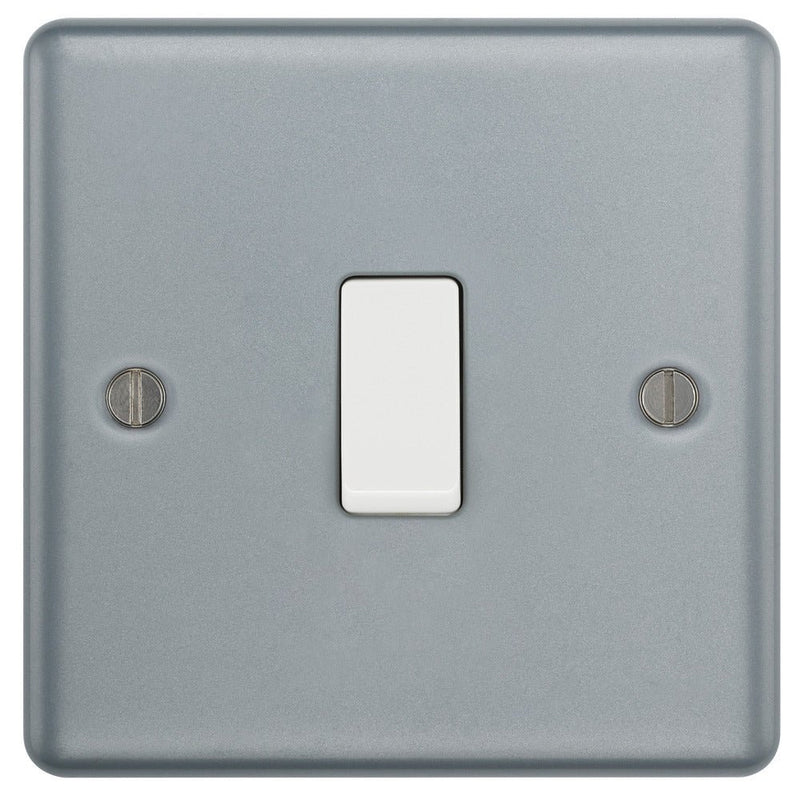

BG MC512 Metal Clad Single Switch, 10Ax 2 Way

BG MC512 Metal Clad Single Switch, 10Ax 2 Way


Sale price£3.68For 1
£4.42 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

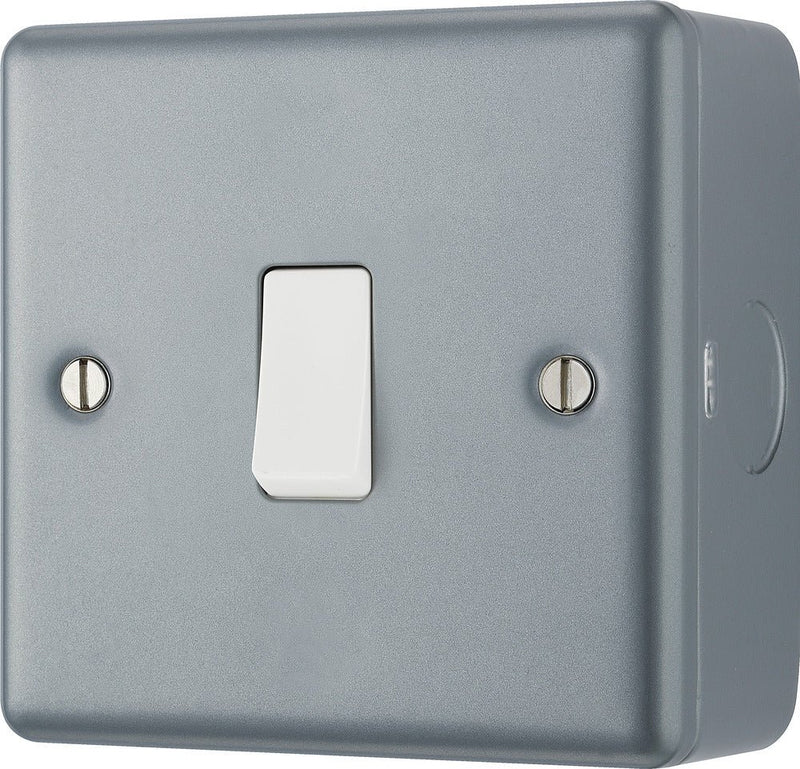

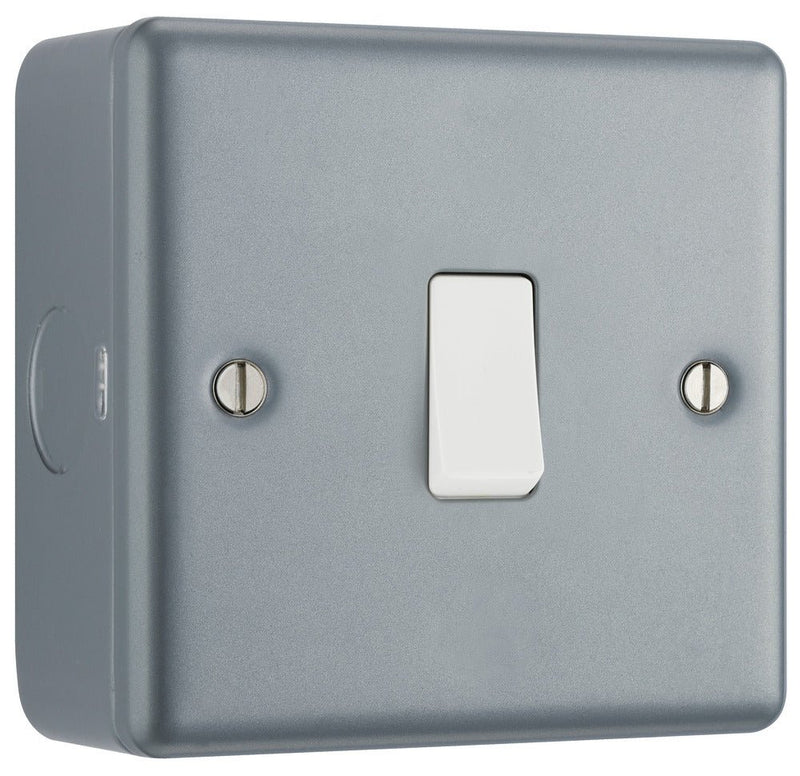

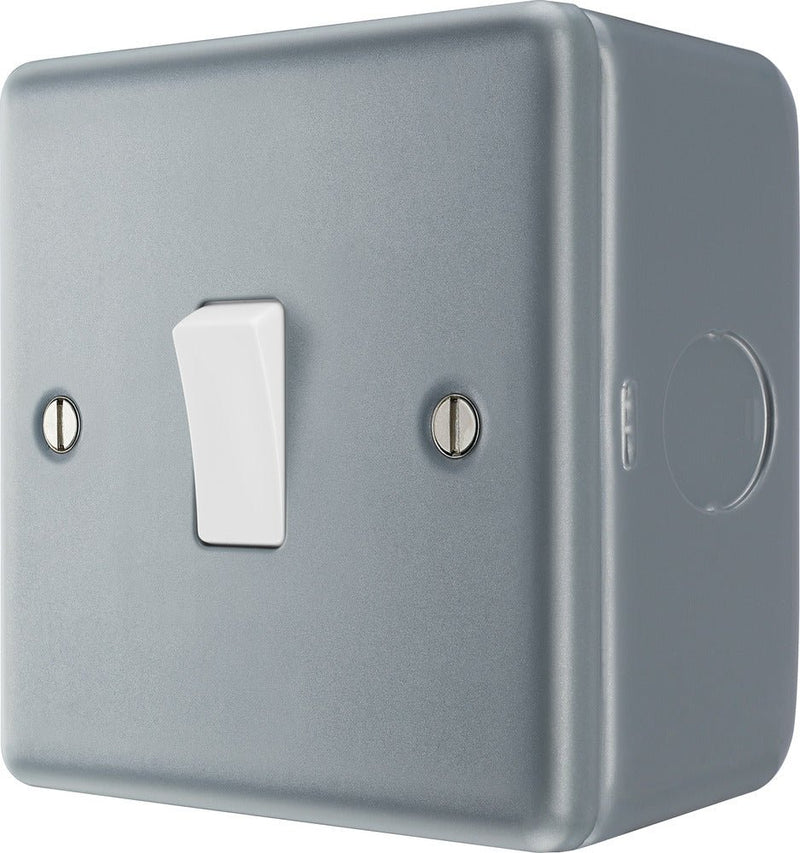

BG MC512 Metal Clad Single Switch, 10Ax 2 Way

Product Description

This Metal Clad 10A single light switch will operate 1 light switch in a room.

The 2 way switching allows a second switch to be added to the circuit to operate the same light from another location, such as 2 different entrance points in a room. This metal clad switch is made from a rugged scratch resistant steel, and is suitable for everyday use in commercial and industrial environments.

Technical Details

Standard(s): BS EN 60669-1
Rating: 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads)
Contact Gap: 3.0mm minimum
Terminal Capacity: 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ²
RoHS Directive: No
WEEE Directive: No
Size: 81.5mm x 81.5mm x 50mm

Product Details

  • Easy to install, supplied with fixing screws and installation instructions

  • 2 way switching allows for a second switch position in a circuit

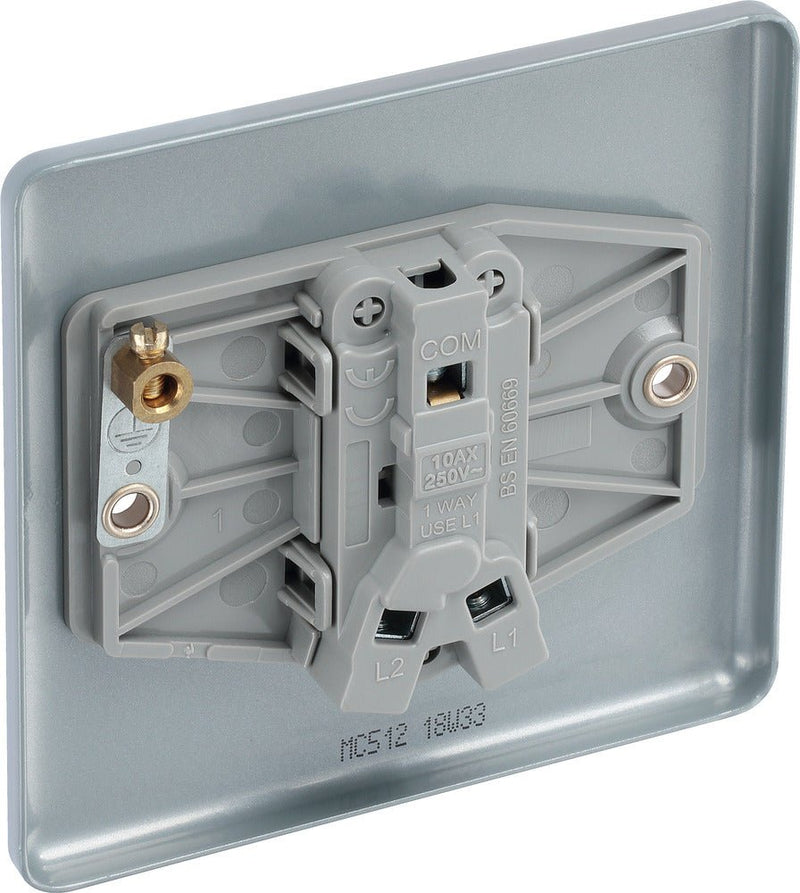

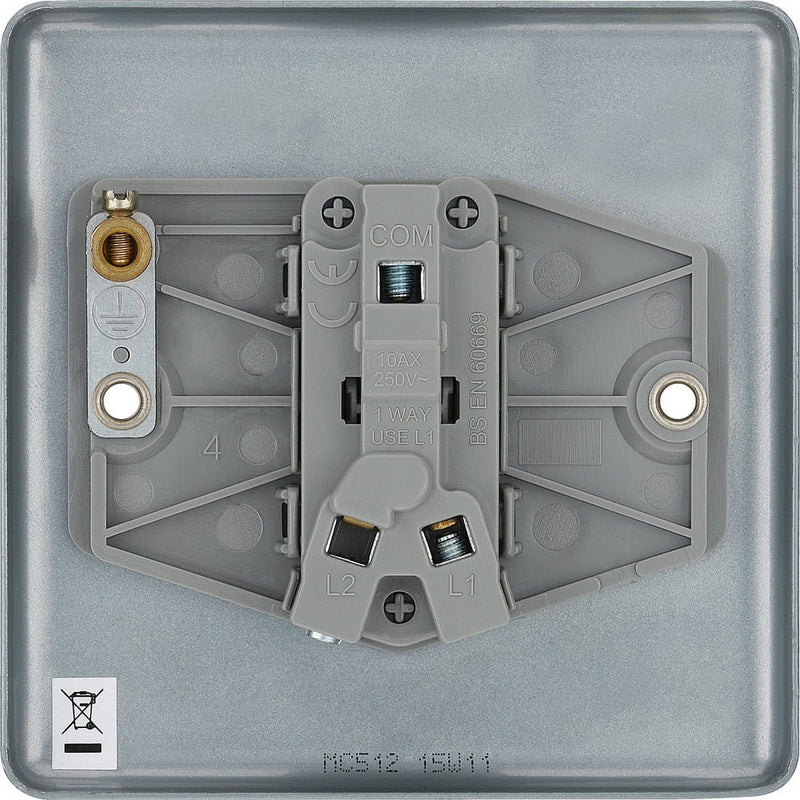

  • Captive, backed out terminal screws for fast installation and to prevent screw loss

  • A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments

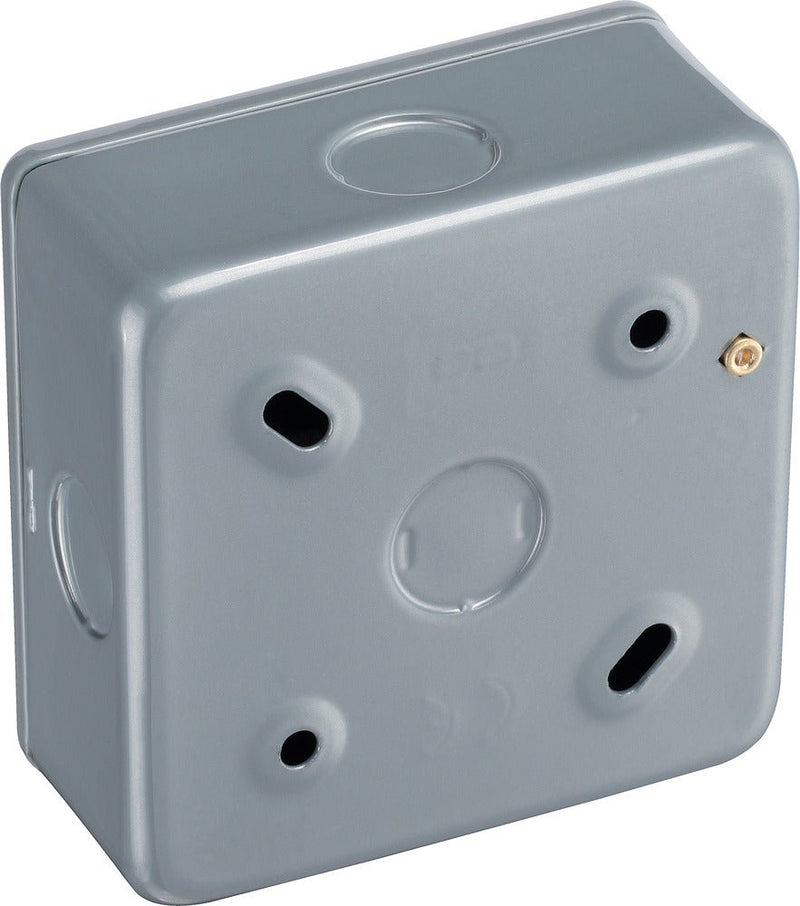

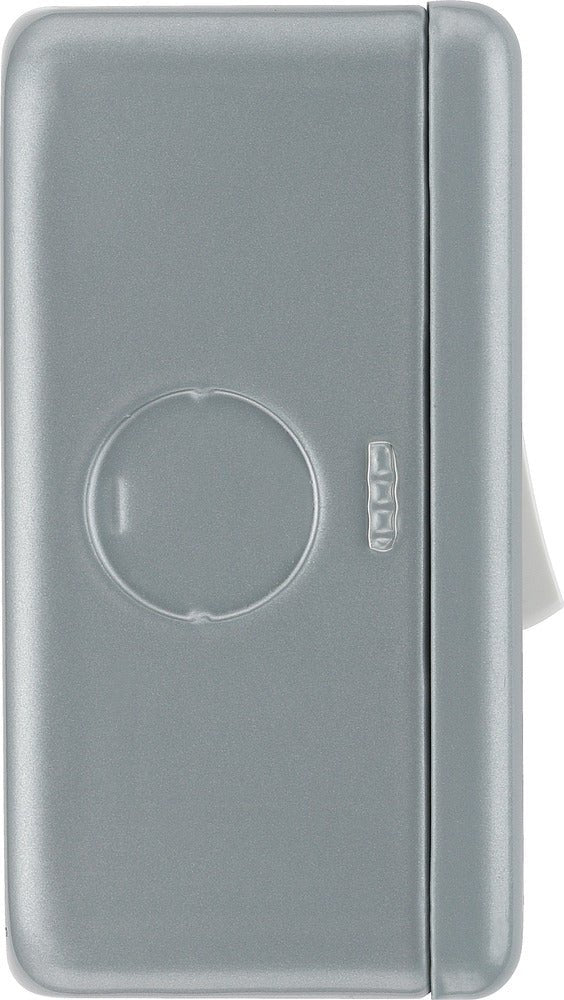

  • Mounting box with 1x 20mm knockouts in each side and rear face

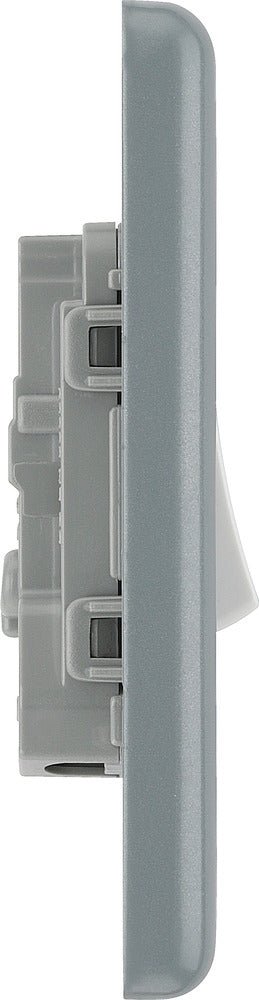

  • Flat profile with rounded edges

Specification

Gtin

5021166051205

Insert colour

White

Internal external

Internal

Product type

Wiring Accessories

Screwless

No

Size

Iiyama

Switched

Yes

Unit colour

Stainless Steel

Unit size

1 Gang

Wiring accessory type

Switch
