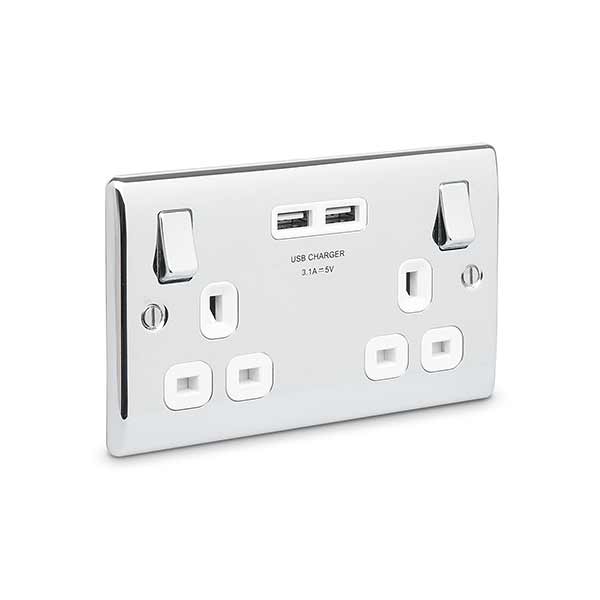

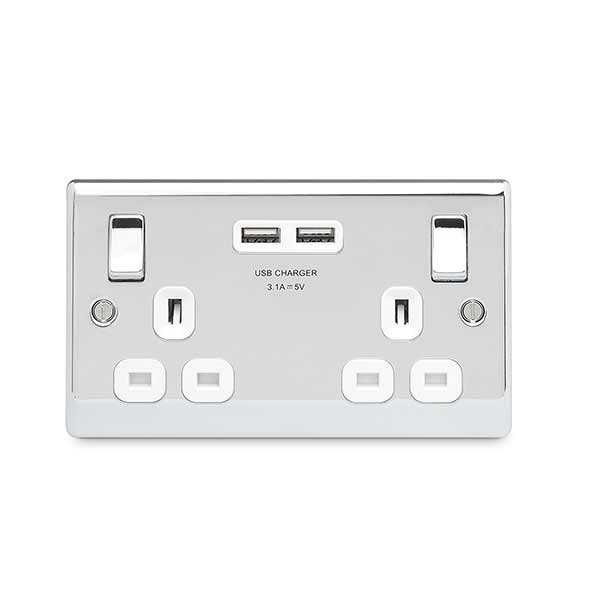

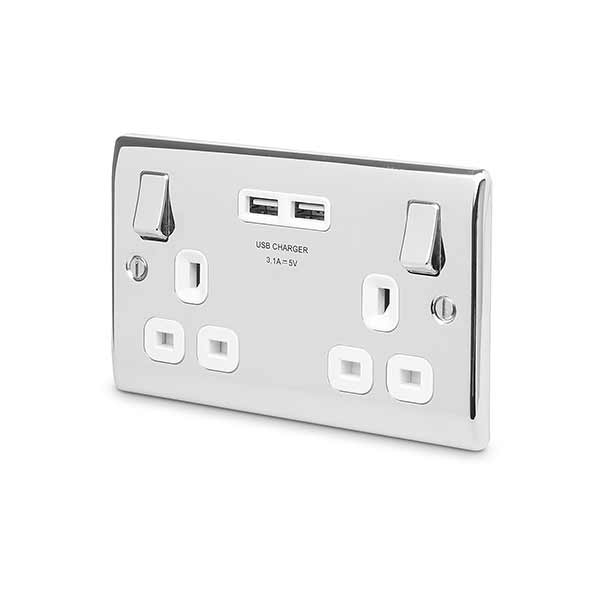

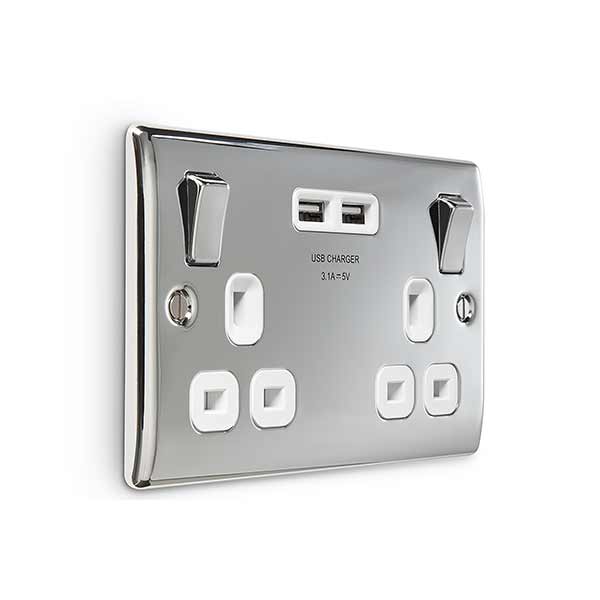

BG NPC22U3W Nexus Metal Polished Chrome 2x Swi. 13A Power Skt w- Usb Charging - 2X Usb Skts (3.1A)
Product Description
This 13A double power socket comes with two USB charging ports, allowing you to plug in an electrical device and charge mobile devices simultaneously without having to sacrifice a power socket.
The sleek and slim metal profile has softly rounded edges and a polished chrome finish to add a touch of luxury to your decor.
Technical Details
| Standard(s): | BS1363-2:2016 |
| ASTA Approval: | Licence Number 1182 |
| Rating: | 13A 240V |
| Contact Gap: | 3.0mm minimum |
| Switch Type: | Single Pole |
| Terminal Capacity - L & N: | 3 x 2.5mm ², 3 x 4.0mm ² & 2 x 6.0mm ² |
| RoHS Directive: | Yes, Conforms |
| WEEE Directive: | Yes |
| Mounting Box Depth (Min): | 25mm |
| Fixing Centres: | 120.6mm |
| USB Output: | 5V, 3.1A, shared across both USB ports |
| Output Tolerance: | <5% |
| Stand-by Power: | <75mW |
| USB Overcurrent Protection: | ≦3.60A |
| Size: | 146.5mm x 86mm x 31mm |
More Details
- Easy to install, supplied with fixing screws and installation instructions
- Free your sockets and charge all your devices - Ideal for mobile phone, tablets, MP3's and other USB chargeable devices
- 3.1A USB charging output, with charge shared across two outlets. 2 Type A outlets, 3.1A, 5V
- Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suite; protective overload function

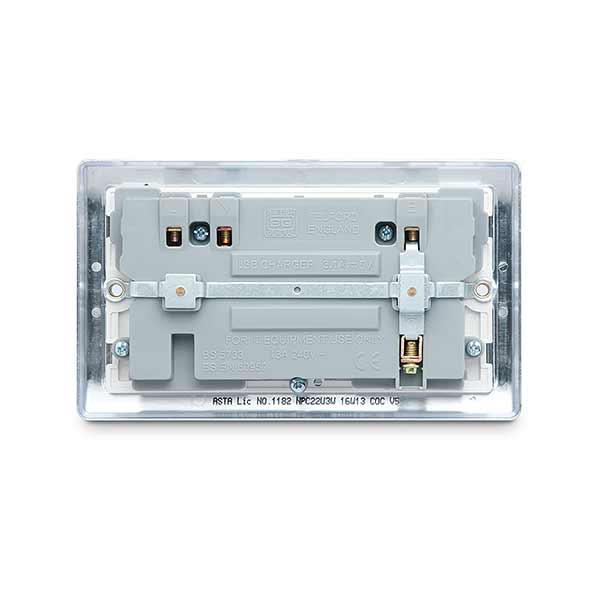

- Angled, colour coded terminals for easy identification and captive screws to prevent screw loss
- Moisture control gasket, prevents tarnishing from new plaster
- Sleek and slim premium metal with softly rounded edges
- No visible plastic around switches
-
Twin earth fitted as standard for high integrity circuits
Specification
Finish ii |
Polished Chrome |
Gtin |
5050765107143 |
Insert colour |
White |
Internal external |
Internal |
Neon |
No |
Product type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit size |
2 Gang |
Wiring accessory type |
Socket |
