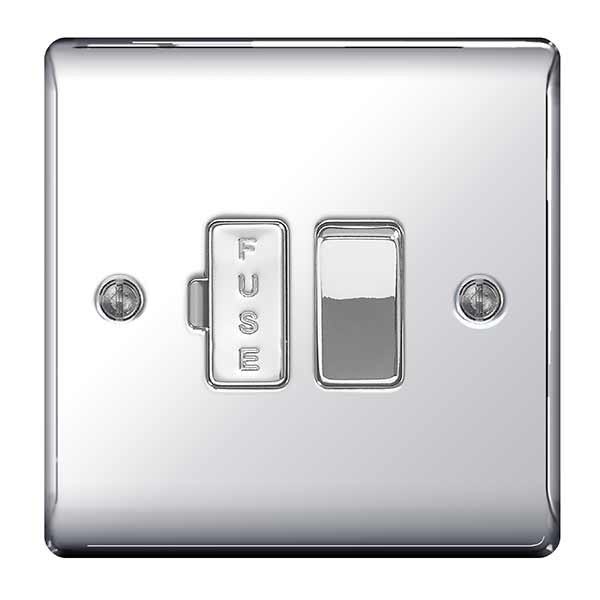

BG NPC50 Nexus Metal Polished Chrome Switched 13A Fused Connection Unit

BG NPC50 Nexus Metal Polished Chrome Switched 13A Fused Connection Unit


Sale price£5.17For 1
£6.20 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

BG NPC50 Nexus Metal Polished Chrome Switched 13A Fused Connection Unit

Product Description

This switched and fused 13A connection unit provides an outlet from the mains containing the fuse, and is ideal for spur circuits and hardwired appliances.


This polished chrome finish unit has a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.

Technical Details

Standard(s): BS 1363 Part 4
Contact Gap:

3.0mm minimum
Switch type: Double pole
Rating: 13 Amp 250V~
Terminal Capacity - L & N: 3 x 2.5mm ² 2 x 4.0mm ² 1 x 6.0mm ²
RoHS Directive: No
WEEE Directive: No
Mounting Box Depth (Min): 35mm
Fixing Centres: 60.3mm
Size: 86mm x 86mm x 28.8mm

More Details

  • Easy to install, supplied with fixing screws and installation instructions

  • Ideal for spur circuits and hard wired power appliances

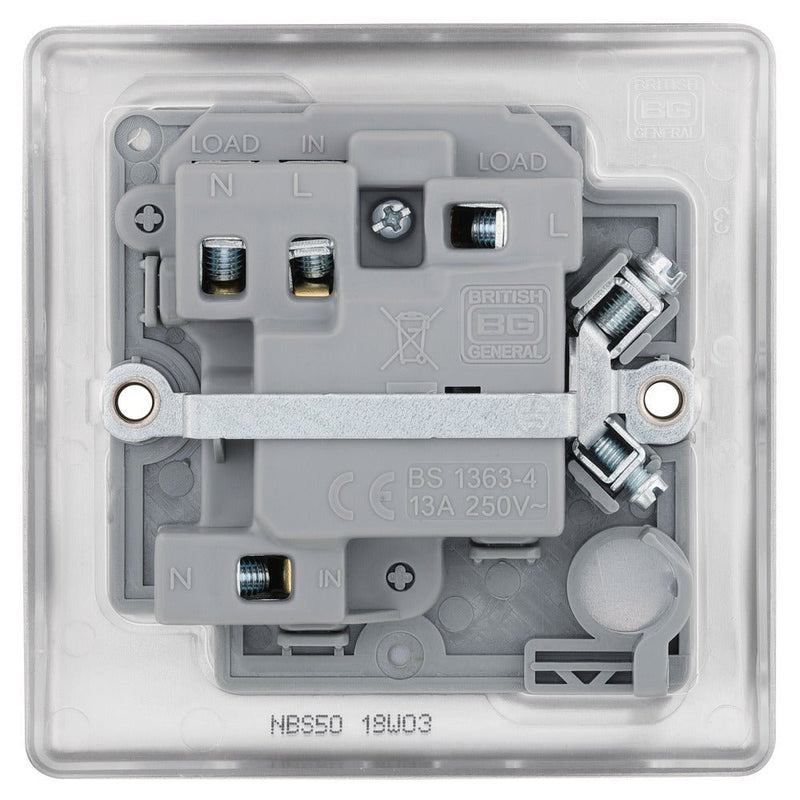

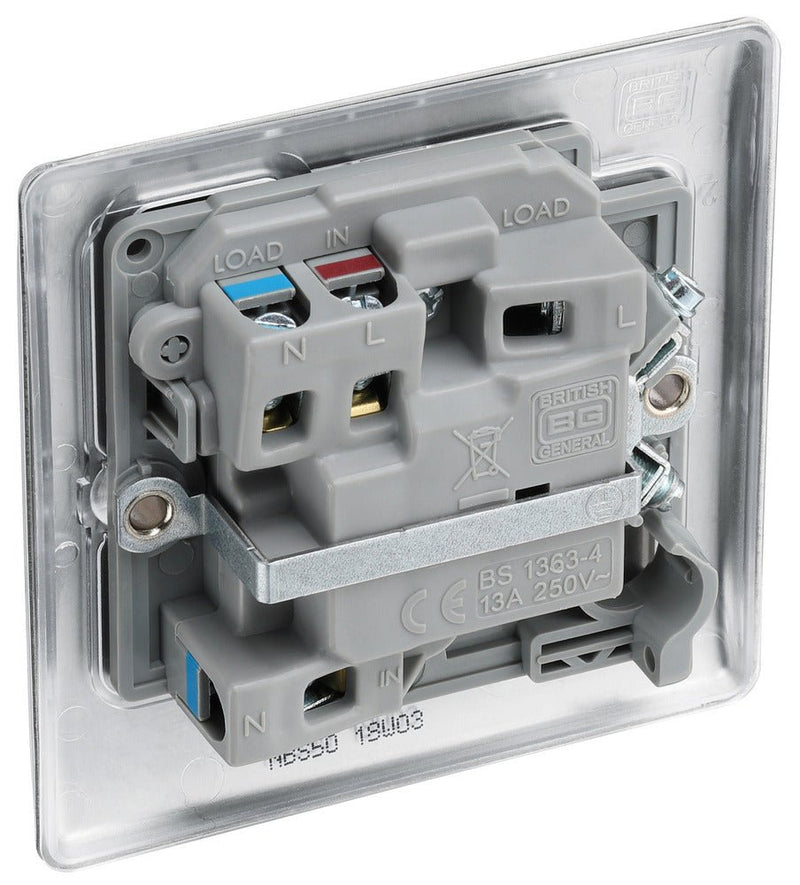

  • Angled colour coded terminals provide easy access for quick installation

  • Captive screws prevent screw loss

  • Sleek and slim premium metal with softly rounded edges

  • Moisture control gasket, prevents tarnishing from new plaster

  • No visible plastic around switch

  • Embossed with 'Fuse' on the fuse cover

Specification

Finish ii

Polished Chrome

Gtin

5050765020060

Insert colour

White

Internal external

Internal

Neon

No

Product type

Wiring Accessories

Screwless

No

Size

Iiyama

Switched

Yes

Unit colour

Silver

Unit size

1 Gang

Wiring accessory type

Spur
