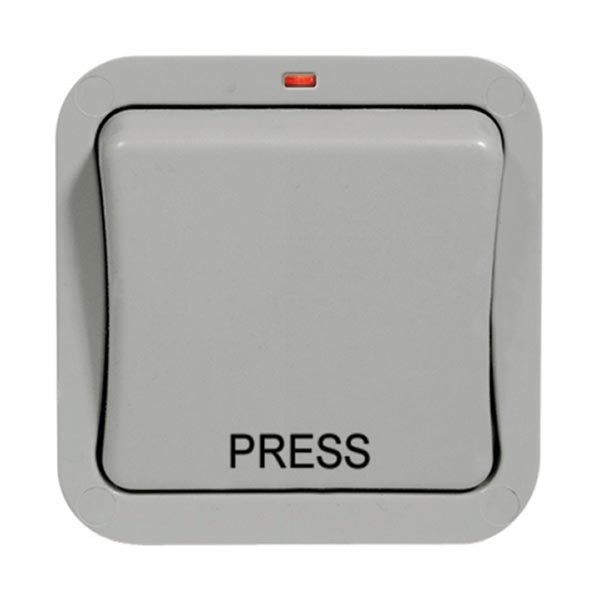

BG WP14 Nexus Storm Weatherproof 2-Way Retractable Bell-Press
Product Description
Outdoor switches are an ideal option for managing outdoor or garden appliances, and can be installed in gardens and patios, as well as in shed’s, outhouses and garages.
This 20A, outdoor bell press is IP66 Rated and designed to protect against water and dust ingress in the most arduous of conditions.
Made with a robust, high impact UV stable housing, multiple gland entry positions , quick wire entry, and an ergonomic design, this switch also has an LED indicator that can be seen through the hinged see-through cover which acts as an enclosure for the socket.
Technical Details
Standard(s): | BS EN 60669-1 |
Rating: | 20 Amp 250V~ (20AX - no derating for inductive or fluorescent loads) |
Switch type: | Double pole |
Contact Gap: | 3.0mm minimum |
Terminal Capacity: | 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ² |
RoHS Directive: | No |
WEEE Directive: | No |
IP rating: | IP66 |
Size: | 91mm x 91mm x 67mm |
Product Details
- Easy to install, supplied with fixing screws and installation instructions
- 20 Amp retractable bepp-press switch
- Robust and high impact outdoor switch, for safe electricity supply outdoors
- Weatherproof and dustproof rating of IP66
- LED power indicators mean the power status is visible even when the cover is down, can be wired to illuminate when off or on depending on wiring blanking caps
- Supplied with multiple knock-out mounting box, with multiple gland entry positions
- Angled in-line colour coded terminals provide easy access for quick installation
- Captive screws prevent screw loss
- Covers to seal the fixing screws
- Earth terminal in mounting box
- Durable see through cover clips securely in place
Specification
Gtin |
5050765022156 |
Internal external |
External |
Neon |
Yes |
Product type |
Wiring Accessories |
Size |
Iiyama |
Switched |
Yes |
Unit size |
1 Gang |
Wiring accessory type |
Bell push |
