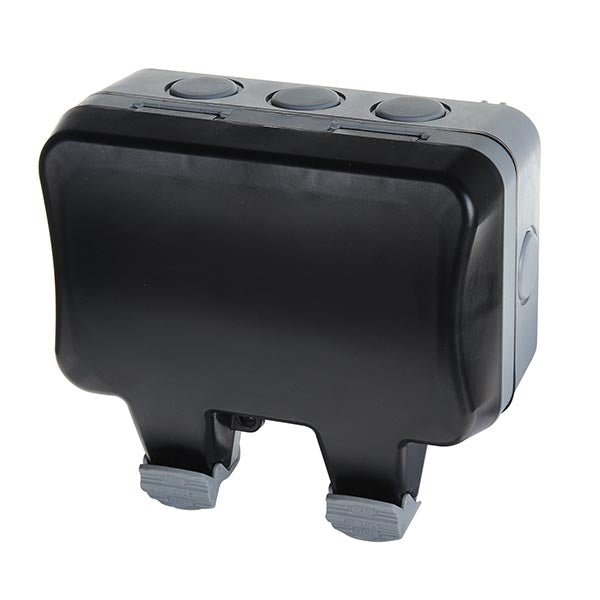

BG WP22RCD Weatherproof 13A 2-Gang Switched Socket with RCD
Product Features
- Stylish modern profile
- Colour coded terminals with backed out captive screws for easy installation
- Covers to seal the fixing screws
- 2 Earth terminals in socket
- 1 Earth terminal in mounting box
- All cable entries in the 4 sides have removable blanking caps.
- Housing will accept accessories from the Nexus range

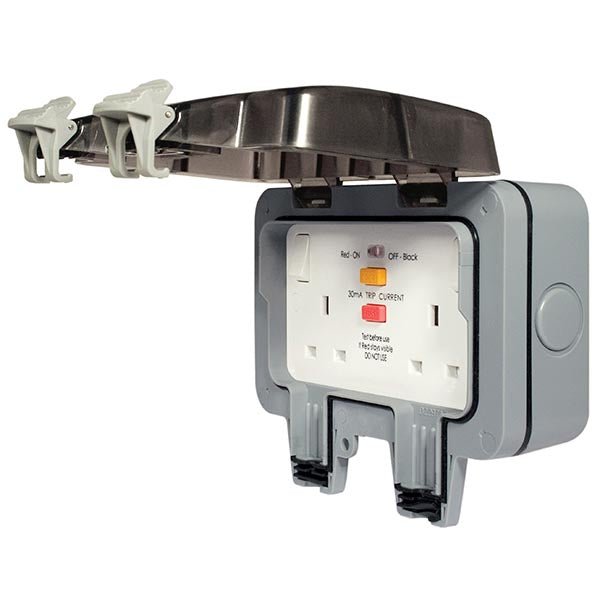

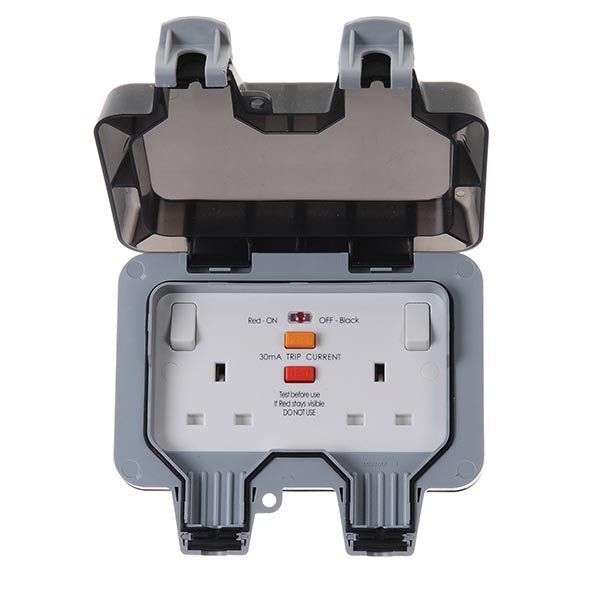

- Cover will stay open to allow for easy access to sockets

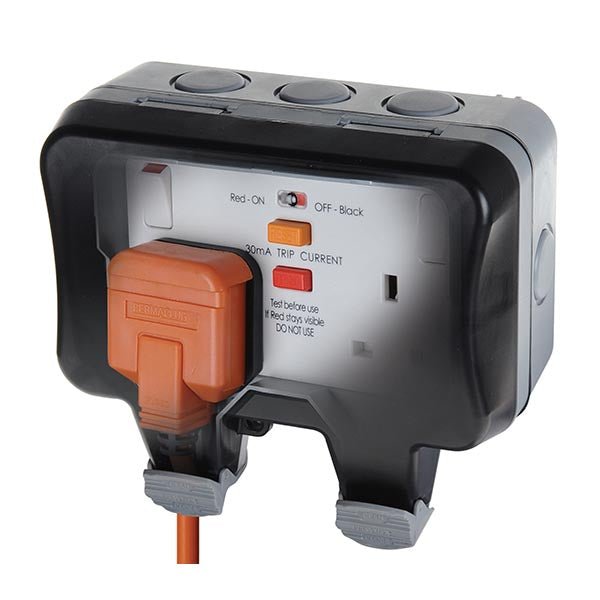

- See-through cover allows status of switchesto be seen
- Latched type, 30mA trip current, 40mS trip
Technical Details
| Standard(s): | BS 1363 Part 2 & BS 7288 |
| Rating: | 13 Amp 250V~ |
| Terminal Capacity: | 3 x 2.5mm ² 3 x 4mm ² 2 x 6.0mm ² |
| Trip Current: | 30mA |
| Switch Type: | Single pole |
| Contact Gap: | 3.0mm minimum - rocker switch |
| Number of 20mm cable entries: | 8 x 20mm. 1 in each of the 2 sides and 3 in each of the top and bottom faces |
| Size: | 171mm x 154mm x 80mm |

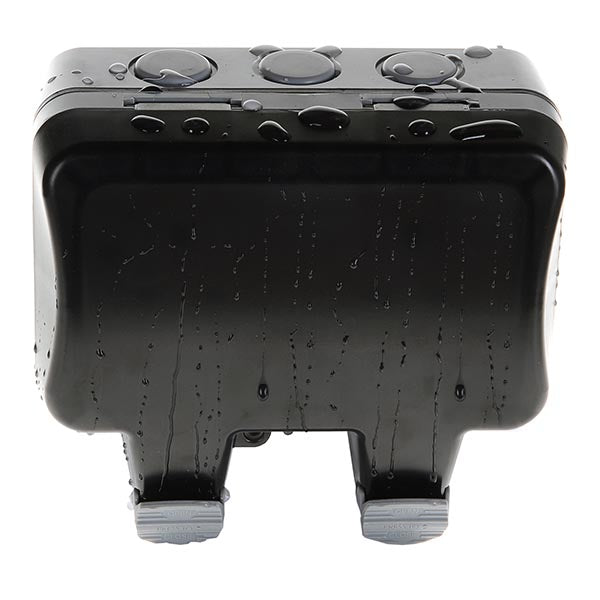

| IP rating: | IP66 |
Specification
Gtin |
5050765022217 |
Insert colour |
Grey |
Internal external |
External |
Neon |
Yes |
Product type |
Wiring Accessories |
Switched |
No |
Unit size |
2 Gang |
Wiring accessory type |
Socket |
