BG WP53 Weatherproof Switched Fused Connection Unit, With Indicator

BG WP53 Weatherproof Switched Fused Connection Unit, With Indicator


Sale price£13.67For 1
£16.40 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

BG WP53 Weatherproof Switched Fused Connection Unit, With Indicator

Product Description

This 13A fused and switched connection unit with power indicator provides an IP66 rated weatherproof outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances.

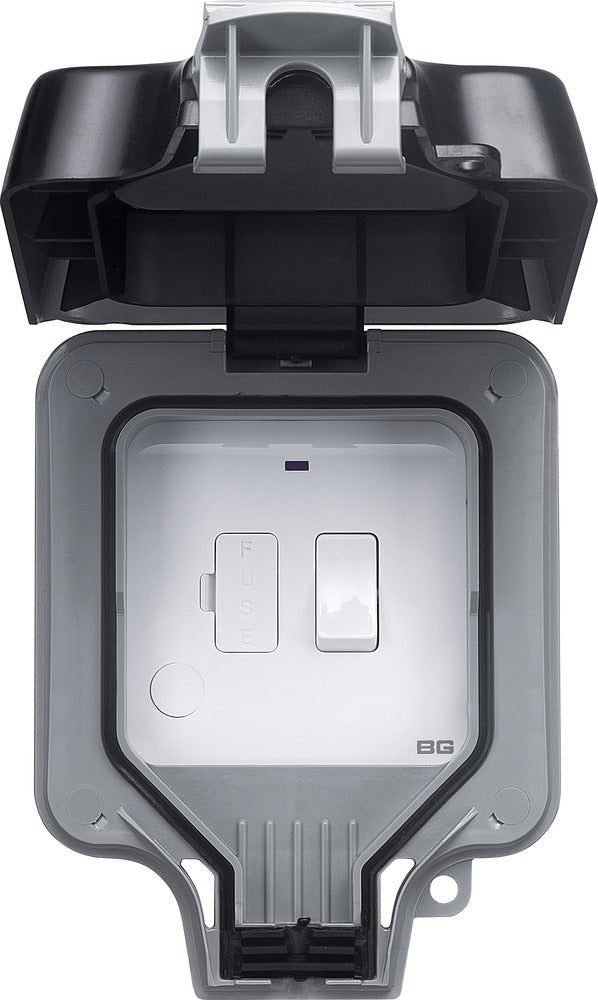

Supplied in a robust, weatherproof encasement with multiple gland entry positions, the power indicator can be seen through the hinged see-through cover which acts as an enclosure for the socket.

Technical Details

Standard(s): BS1363-4
Rating: 3,120 Watts Max, 13A 240V ~
Switch type: Double pole
Contact Gap: 3.0mm minimum
Terminal Capacity: 3 x 2.5mm2, 2 x 4.0mm2 & 1 x 6.0mm2
RoHS Directive: No
WEEE Directive: No
IP rating: IP66

Product Details

  • Easy to install, supplied with fixing screws and installation instructions

  • Ideal for spur circuits and hard wired power appliances

  • Angled colour coded terminals provide easy access for quick installation

  • Captive screws prevent screw loss

  • 1 drill out entry 20/25mm in rear face

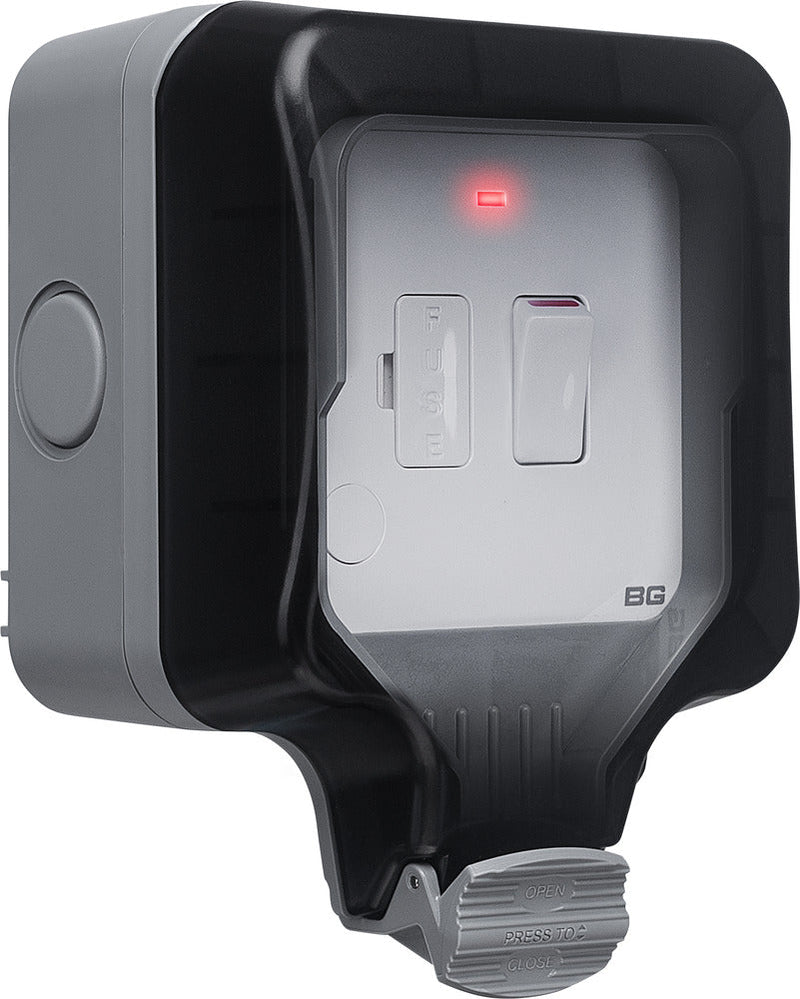

  • Visible indication of power status through see-through cover

  • Robust and high impact outdoor unit, for safe electricity supply outdoors

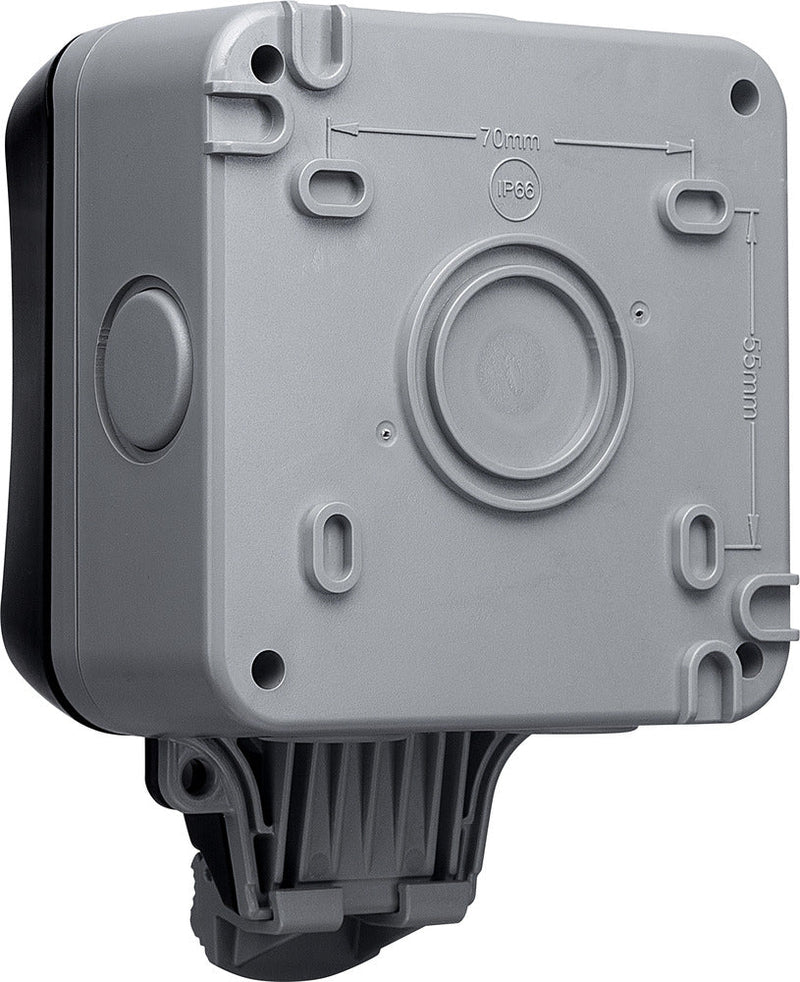

  • Supplied with multiple knock-out mounting box , with 5 versatile entry options with an easy push out blank plug design and one cut out entry option on rear

  • Flex outlet channel

  • Twin earth fitted as standard for high integrity circuits

  • Embossed with 'Fuse' on the fuse cover

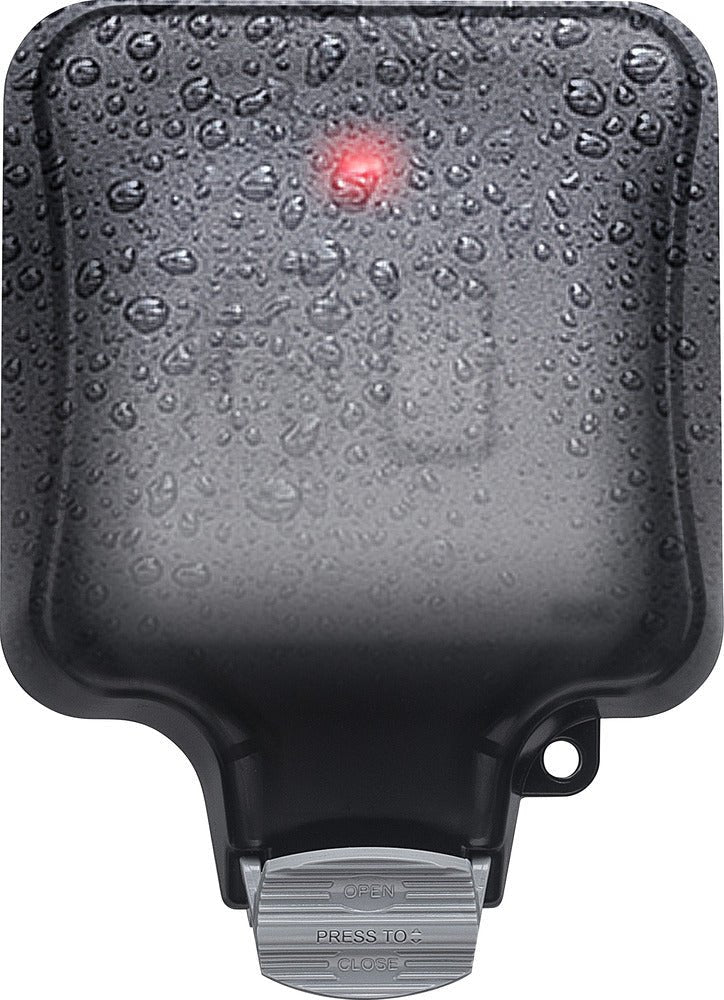

  • Power indicator is visible even when the cover is down

Specification

Internal external

External

Neon

Yes

Product type

Wiring Accessories

Switched

Yes

Unit size

1 Gang

Wiring accessory type

Spur
