Product Details:

Approvals/certifications : Certified to EN54-5 by UL International (UK) Limited.

Application/operation : Generates an alarm condition when it detects a temperature of between 84ºC & 100ºC.

Application temperature : 55°C typical, 80°C max.

Static response temperature : 84°C min, 100°C max.

Supply wiring : 2-wire monitored, polarity insensitive.

Supply/operating voltage : 9 to 33V DC.

Quiescent current : 50µA @ 15 VDC.

Alarm voltage : 9-33V DC.

Alarm current : 1.5mA @ 2-8.5V; 25 +/- 2mA @ 10.5-15V; 1.5AmA @ 18-24V; 2mA @ 33V.

Alarm reset voltage : 2V max (1 second alarm reset time).

Product dimensions (mm) : 100mm diameter x 42m deep (detector only); 100mm diameter x 50mm deep (detector in base).

Construction & finish : White polycarbonate.

IP Rating : TBC.

Weight : 100g.

Key Features:

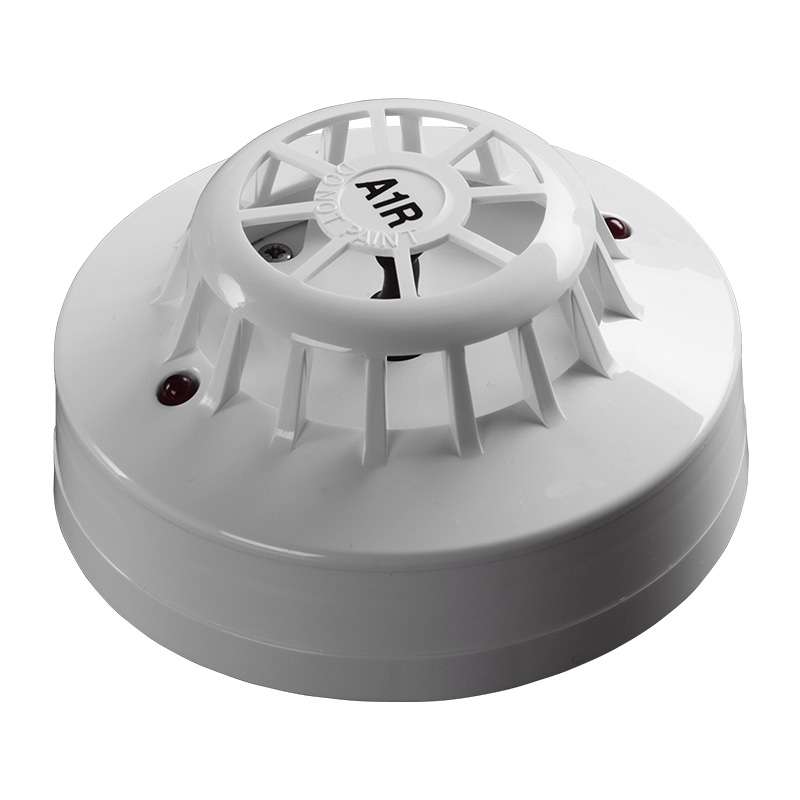

• A high quality Type A1R rate of rise heat detector.

• Suitable for use with C-TEC’s CFP AlarmSenSe range of 2-8 Zone Two-Wire Fire Panels.

• Housed in a pure white polycarbonate moulding.

• Fitted with two alarm LEDs to allow 360º visibility.

• Third-party certified to EN54-5 by UL International (UK) Limited.

• 9-33V DC operating voltage.

• Requires a 45681-244APO AlarmSense base.
