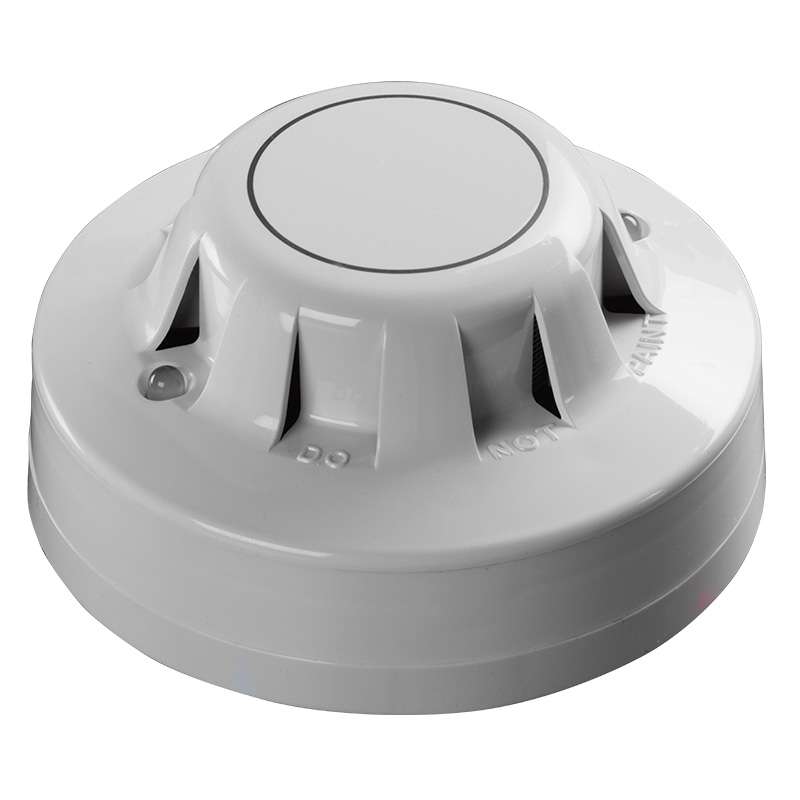

PRODUCT DETAILS

• Approvals/certifications: Certified to EN54-7 by UL International (UK) Limited.
• Application/operation: Generates an alarm condition when it detects a pre-set threshold of smoke penetration into the smoke chamber.
• Supply wiring: 2-wire monitored, polarity insensitive.
• Supply/operating voltage: 9 to 33V DC.
• Quiescent current: 50µA @ 15 VDC.
• Alarm voltage: 9-33V DC.
• Alarm current: 1.5mA @ 2-8.5V; 25 +/- 2mA @ 10.5-15V; 1.5AmA @ 18-24V; 2mA @ 33V.
• Alarm reset voltage: 2V max (1 second alarm reset time).
• Product dimensions (mm): 100mm diameter x 42m deep (detector only); 100mm diameter x 50mm deep (detector in base).
• Construction & finish: White polycarbonate.
• Weight: 100g.
