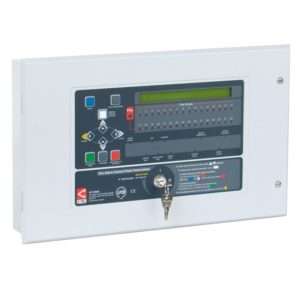

C-Tec XFP502-X XFP 2 Loop 32 Zone Addressable Fire Panel (XP95-Discovery protocol)
XFP 2 Loop 32 Zone Addressable Fire Panel (XP95/Discovery protocol)Addressable Fire Systems Apollo XP95/Discovery XFP 1-2 Loop Fire Panels
C-TEC’s XFP two loop 32 zone addressable fire alarm panel offers high performance at a very competitive price.
LPCB certified to EN54 parts 2 & 4, it is supplied in durable metal enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Apollo’s XP95/Discovery protocol.
Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe’s best-selling addressable fire panels.
Packed full of engineering features – please refer to the feature list below – the XFP502/X is also fully compatible with C-TEC’s Hush Button fire alarm solution and its new range of EN54 certified addressable sounders and VADs.
- Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
- Compatibility with Apollo’s XP95/Discovery protocol.
- Two independently programmable conventional sounder circuits.
- Two programmable inputs.
- A fault output relay and three programmable relay outputs with voltage free changeover contacts.
- A selection of zone dependency/coincidence functions.
- A day/night (building occupied/unoccupied) function.
- An investigation delay period function.
- Phased evacuation facility.
- An alarm counter that records how many times the panel has been in alarm state.
- Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
- An integral EN54-4/A2 switch mode power supply.
- Adjustable contamination levels.
- Earth fault monitoring.
- Combined keypad / keyswitch entry to Access Levels 2 and 3.
- 999 event monitoring.
- An intuitive Windows based upload-download PC program.
- Optional flush-mounting bezel and glazed stainless steel enclosure also available.
- Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.
Technical Specifications:
| Protocol/compatibility | |
|---|---|
| Mains supply | |
| Mains rated current | |
| Internal power supply | |
| Total output current limited to | |
| Quiescent current | |
| Max battery size and type | |
| No. of loop drivers | |
| Max. loop output current | |
| Max. loop length | |
| Max. addressable devices per loop | |
| No. of conventional sounder circuits | |
| EOL resistor value | |
| Max. sounder output current | |
| Auxiliary relays | |
| Other outputs |
24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA. |
| Auxiliary inputs | |
| PC connection | |
| Indicators | |
| Connections | |
| Expansion connections | |
| Product dimensions (mm) |
410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid). |
| Construction & finish | |
| IP Rating | |
| Weight | |
| Operating conditions/temperature |
Specification
Gtin |
5056059608082 |
Product type |
Fire Alarm Panel |
