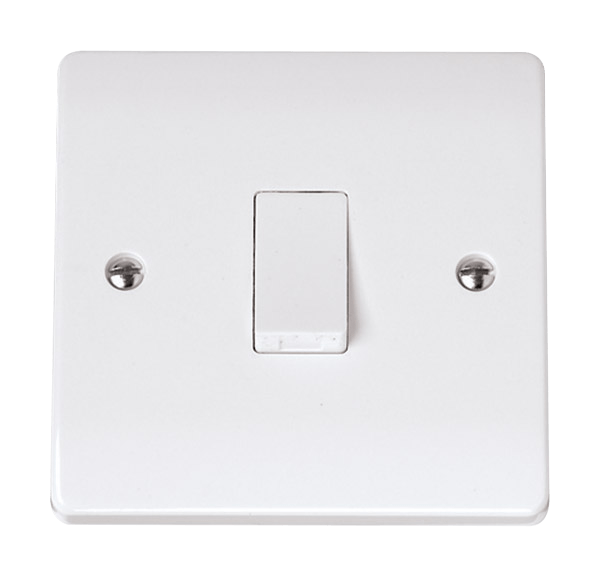

General Information:

• Plate Dimensions:  (mm) 86 (W) x 86 (H) x 9.5 (D)
• Plate Fixing Centres - Horizontal (mm) : 60.3
• Style : Smooth Profile
• Colour : Polar White
• Materials : Front Plate & Rocker Switch: Urea
• Rear Housing: Nylon
• Terminals: Brass
• Terminal Screws: Steel & Yellow Passivated
• Contacts: Silver “on-lay” Copper / Brass
• Internal Busbars: Formed Pressed Brass

• Operating Voltage (AC): 250
• Frequency (Hz) ; 50
• Inductive Load Rating (AX) : 10
• Load Rating ; Comments Suitable for Fluorescent or Inductive Loads
• Termination Type ; Screw
• Terminal Size (mm) ; Ø3.5 Terminal Torque Value (Nm) 0.5
• Terminal Capacity - Solid (mm²):  4 x 1.5 or 2 x 2.5
• Modular Rocker Switches ; No
• 1 Way Switch ; Yes
• Minimum Back Box Depth (mm) : 16
• Ingress Protection:  IP2
• Operational Temperature: (°C) : -5 to +40
