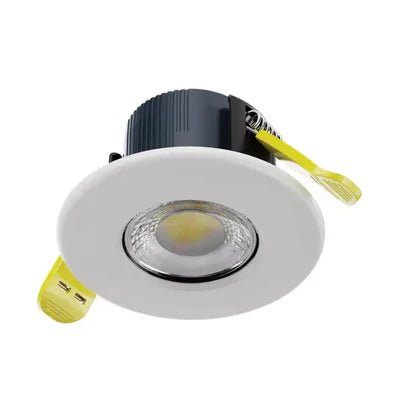

Collingwood DLT551500B H2 Lite CSP Dual Wattage, CCT Downlight
PRODUCT OVERVIEW
The H2 Lite CSP is a superior offering that is engineered to be the perfect fit-and-forget
solution. The colour temperature can be easily controlled by simply twisting the bezel off and flicking the switch on the front face of the product. The addition of the 2200K colour
temperature gives you the option of creating an excellent and warm atmosphere. Large piano key terminals allow loop-in/ loop-out wiring with ease.
| Warranty | 7 years |
|---|---|
| CRI |
80
|
| IP Rating | IP65 (from below) IP20 (from above) |
| Dimmable Option | Mains (Leading Edge/Trailing Edge) |
| Adjustability | Not adjustable |
| Input | 220-240V AC |
| Insulation Coverable | Rolled and blown insulation |
| Cut Out | 68-72 |
| Bathroom Zone | 1 |
| Building Regulations | Part B, C, E, P & L |
| Ceiling Joist Approvals | Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min |
| Colour / Finish | White |
| Wattage Range | 4-6W |
| CCT Range | 2200K / 2700K / 3000K / 4000K |
| LED Lifetime | L70 70,000h |
| lm/W Range | 105-145 |
| Height | 54 |
Specification
Downloads
Download product data sheets
