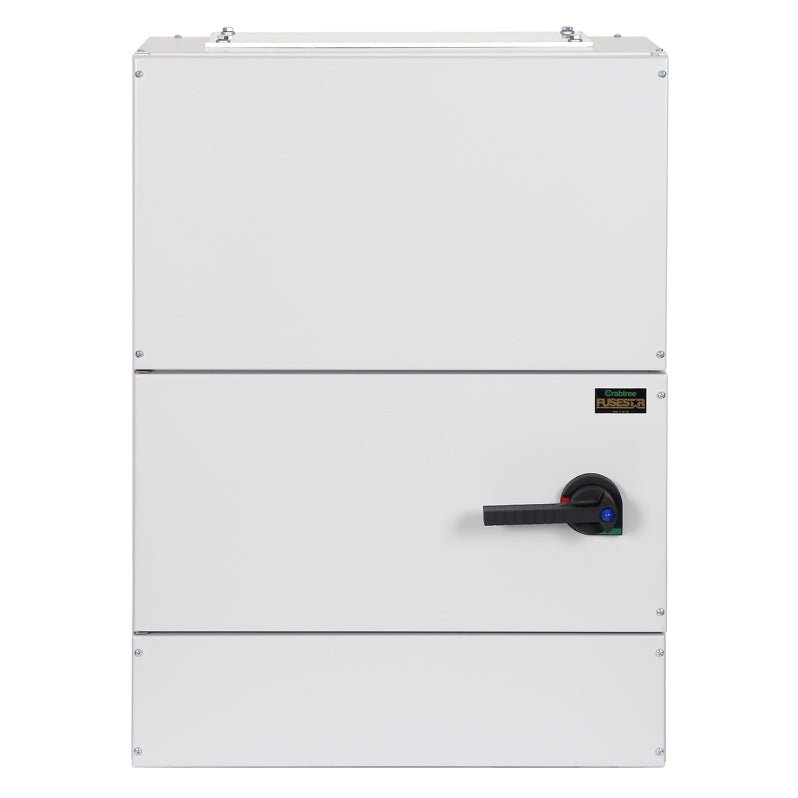

Product Details

• Max. rated operation voltage Ue AC: 690 V

• Rated permanent current Iu: 400 A

• Rated operation power at AC-23, 400 V: 220 kW

• Suitable for fuses: Shape B1-B3

• Number of poles: 3

• With error protection: No

• Type of electrical connection of main circuit: Bolt connection

• Equipped with connectors: Yes

• Suitable for floor mounting: No

• Suitable for front mounting: No

• Suitable for busbar mounting: No

• Type of control element: Door coupling rotary drive

• Position control element: Front side

• Motor drive optional: No

• Motor drive integrated: No

• Version as emergency stop installation: No

• Degree of protection (IP), front side: IP40

• Product Standard/s: BS EN 60947-3, IEC 60947-3

• Terminal Capacity L&N: 300 mm²

• Frequency: 50 Hz

• CE Conformity: Yes

• WEEE Symbol: Yes

• UKCA Conformity: Yes

• Height: 850 mm

• Width: 620 mm

• Depth: 293 mm

• Country Of Origin: UK

Please note that this item will be shipped on a pallet to avoid damage and delivery charges will apply
