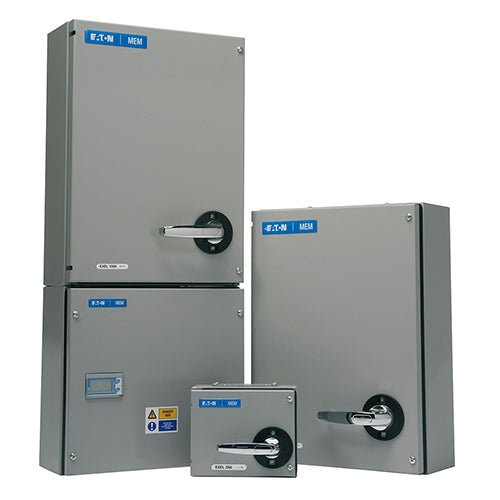

Eaton 60KXTNC2F 63A, TP+N Exel 2 Switch Disconnector Fuse (HRC)
- Units have removable moving contact assemblies to facilitate wiring.
- Exel 2 surface-mounting enclosures are fabricated from rust-protected sheet steel with a light grey paint finish.
- Removable blank top and bottom end plates and gasket doors give IP41 protection.
- Chromium-plated front operated handles, with “ON (I) OFF (O)” indication, and internal fixing enabling units to be mounted closely side by side.
- Interiors comprise porcelain bases fitted with non-ferrous conducting components.
- Nominal Rating: 63A
- Utilisation category at Ue 415V to BS EN 60947-3 (AC22A): 39A
- Poles: Three poles + Neutral
- Standards: BS EN 60947-3
- Maximum Cable Size: 35mm²
