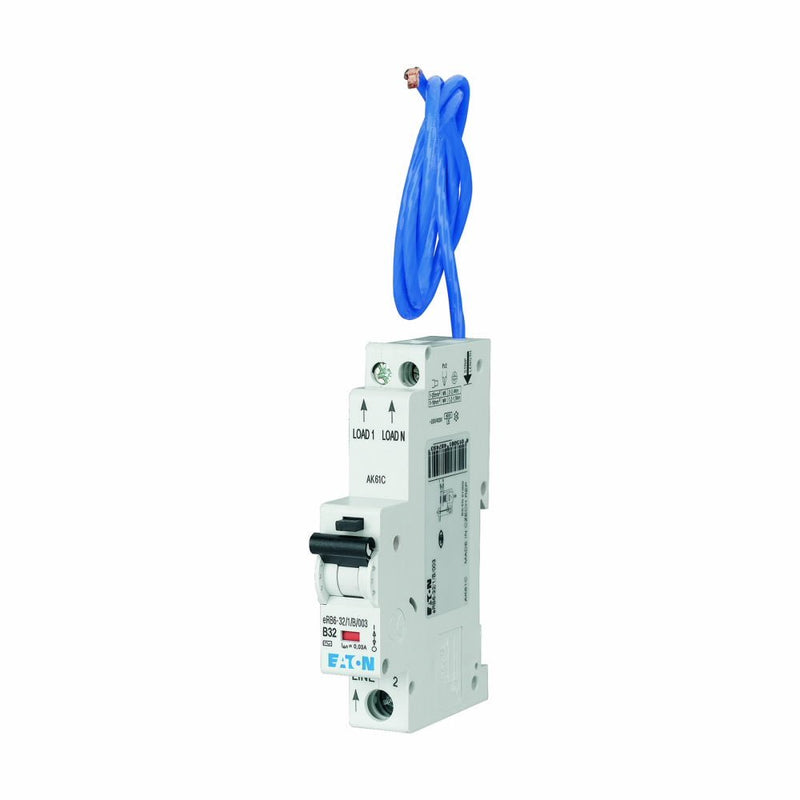

Eaton EMCH106R30C 06A, 30mA, Type C Single Pole RCBO
Product Description
- Rated Current: 6A
- Fault Current Rating: .03 A
- Voltage Type: Ac
- Voltage Rating: 240 V - 240 V
- Rated Operational Voltage (Ue) - Max: 240 V
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 4 Kv
- Frequency Rating: 50/60 Hz
- Leakage Current Type: A
- Rated Short-Circuit Breaking Capacity (En 60947-2): 0 Ka
- Rated Short-Circuit Breaking Capacity (En 61009): 10 Ka
- Rated Short-Circuit Breaking Capacity (En 61009-1): 10 Ka
- Rated Short-Circuit Breaking Capacity (Iec 60947-2): 0 Ka
- Surge Current Capacity: .25 Ka
- Disconnection Characteristic: Undelayed
- Release characteristic: C
- Overvoltage Category: III
- Pollution Degree: 2
Specification
Depth |
216mm |
Gtin |
4015081489329 |
Height |
72mm |
Product type |
Commercial RCBOs |
Width |
17.5mm |
