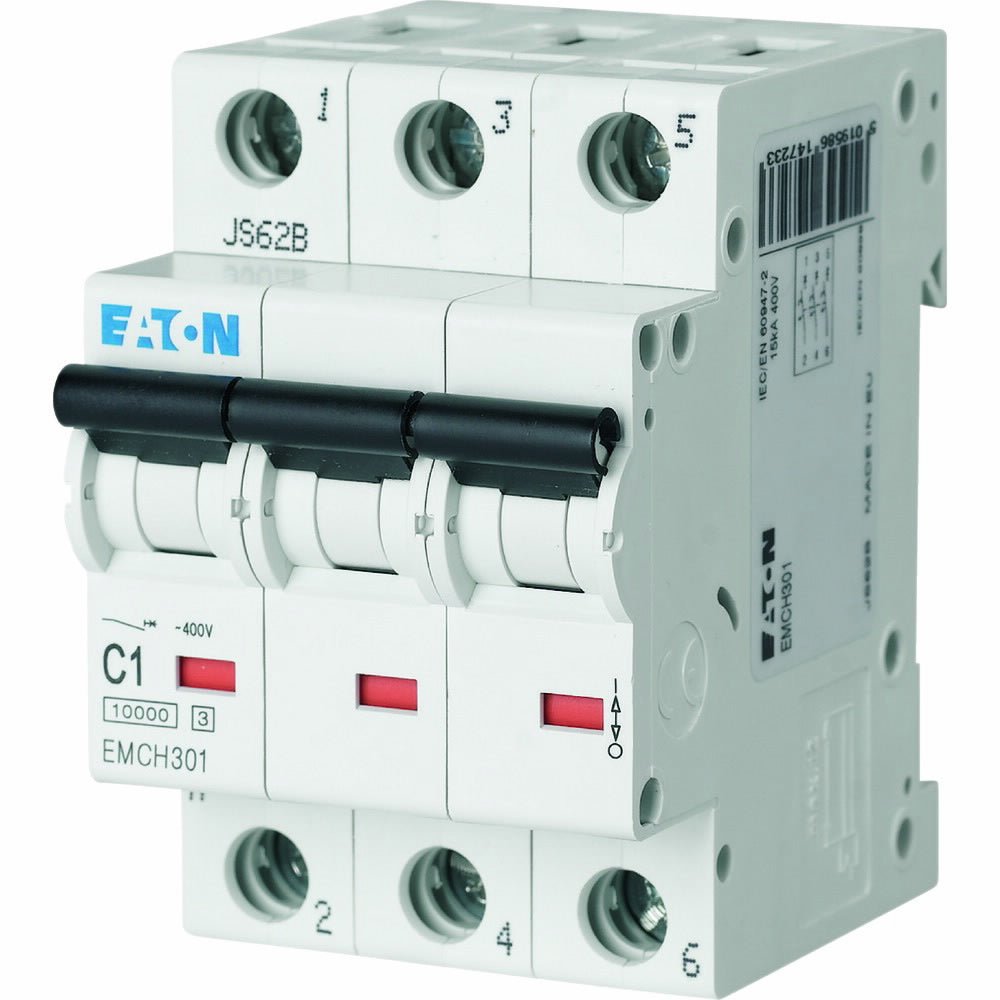

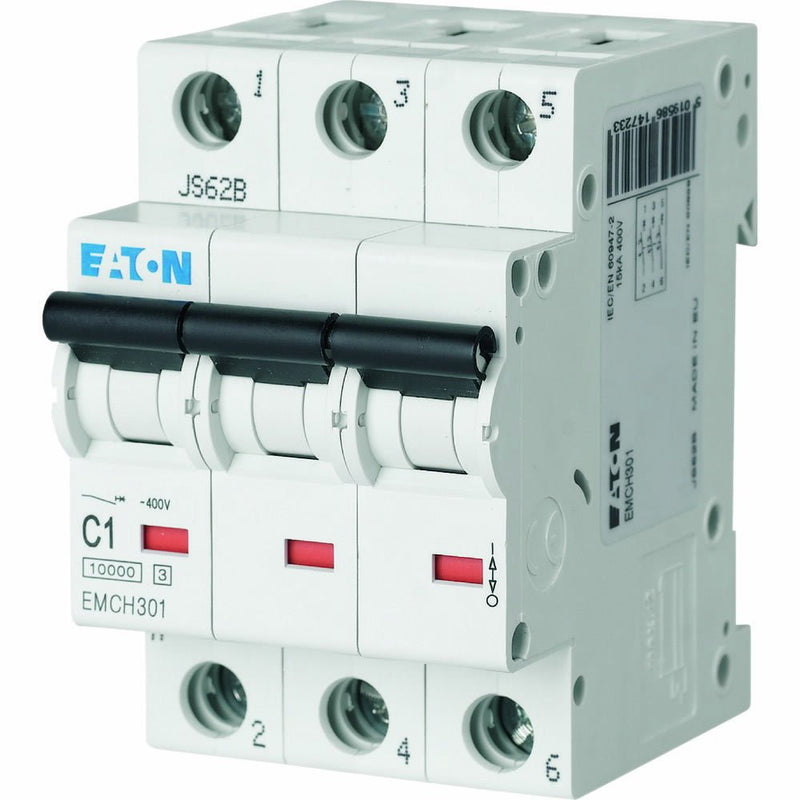

Eaton EMCH316 16A, 10kA, Type C Triple Pole MCB
Product Description
- Number Of Poles (Protected): 3
- Rated Short-Circuit Breaking Capacity (En 60898) At 230 V: 10 Ka
- Release Characteristic: C
- Current Limiting Class: 3
- Rated Short-Circuit Breaking Capacity (En 60898) At 400 V: 10 Ka
- Amperage Rating: 16A
- Frequency Rating - Max: 60 Hz
- Width In Number Of Modular Spacings: 3
- Rated Short-Circuit Breaking Capacity (Iec 60947-2) At 400 V: 15 Ka
- Connectable Conductor Cross Section (Solid-Core) - Max: 25 Mm²
- Number Of Poles (Total): 3
- Degree Of Protection: Ip20
- Overvoltage Category: Iii
- Rated Short-Circuit Breaking Capacity (Iec 60947-2) At 230 V: 15 Ka
- Ambient Operating Temperature - Max: 75 °C
- Pollution Degree: 2
- Connectable Conductor Cross Section (Multi-Wired) - Min: 1 Mm²
- Rated Impulse Withstand Voltage (Uimp): 4 Kv
- Built-In Depth: 70.5 Mm
- Rated Switching Capacity (Iec/En 60898-1): 10 Ka
- Connectable Conductor Cross Section (Solid-Core) - Min: 1 Mm²
- Number Of Poles: Three-Pole
- Rated Switching Capacity (Iec/En 60947-2): 15 Ka
- Ambient Operating Temperature - Min: -25 °C
- Connectable Conductor Cross Section (Multi-Wired) - Max: 25 Mm²
- Type: Em|Miniature Circuit Breaker
- Tripping Characteristic: C
- Frequency Rating - Min: 50 Hz
- Rated Operational Voltage (Ue) - Max: 400 V
- Voltage Type: AC
- Rated Insulation Voltage (Ui): 440
Specification
Amps ii |
16 |
Depth |
85mm |
Gtin |
5019586122452 |
Height |
73mm |
Product type |
Commercial MCBs |
Width |
52.5mm |
