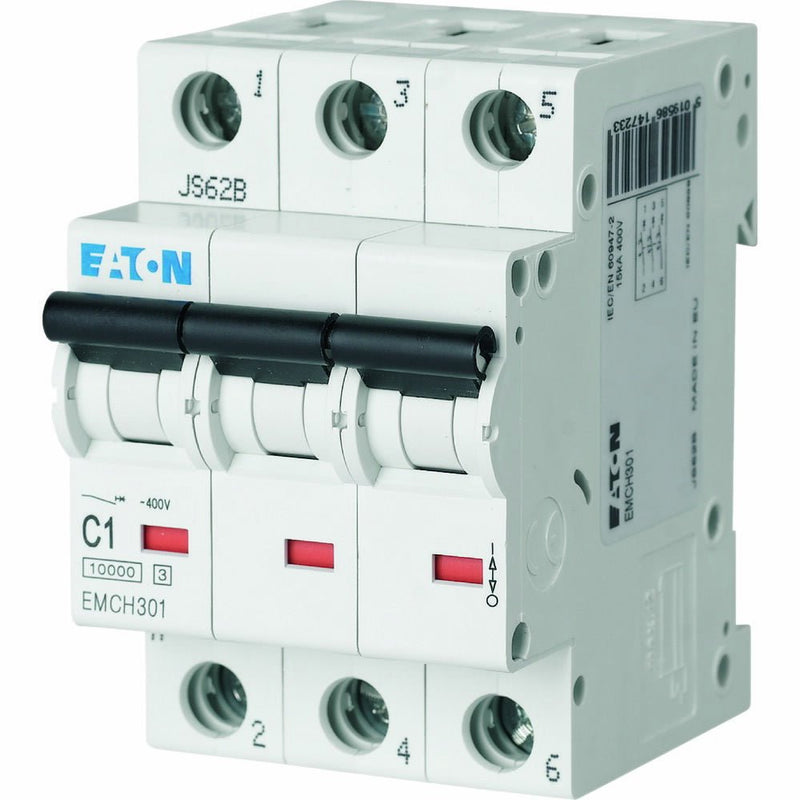

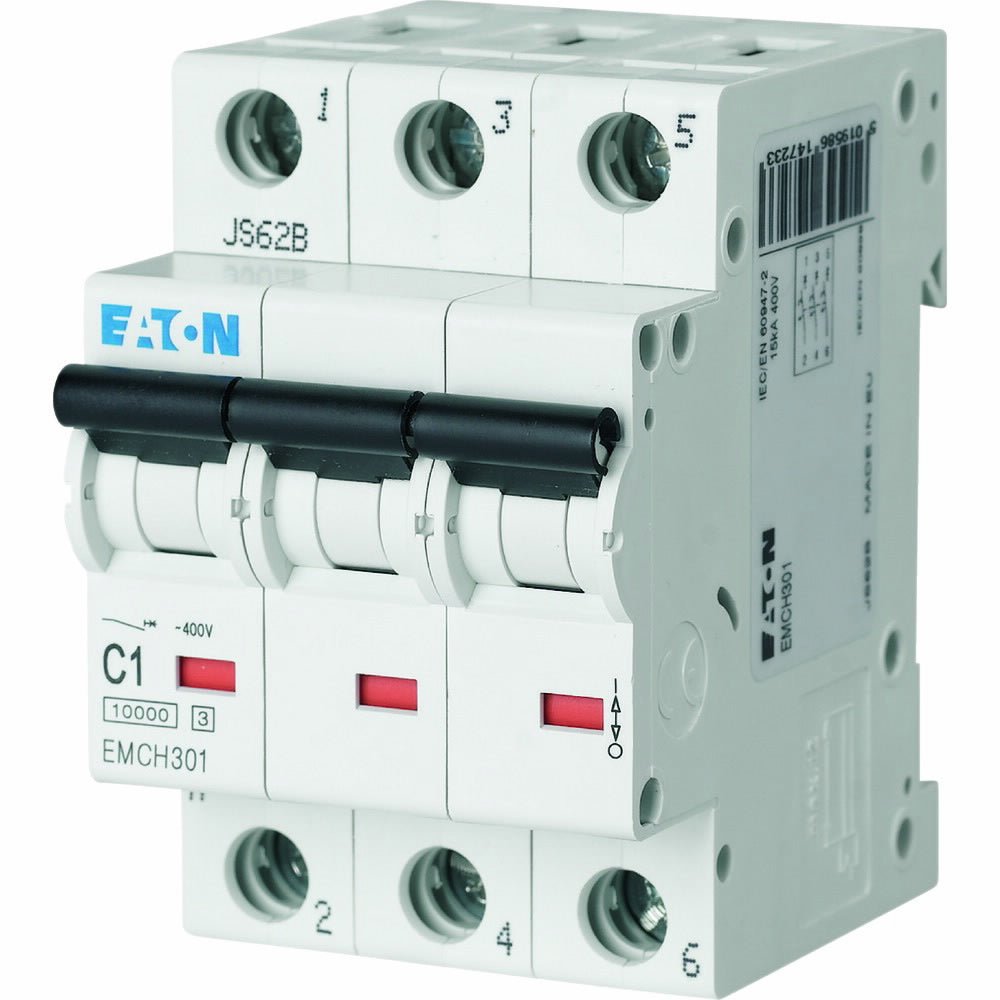

Eaton EMCH320 20A, 10kA, Type C Triple Pole MCB

Eaton EMCH320 20A, 10kA, Type C Triple Pole MCB


Sale price£47.41For 1
£56.89 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Eaton EMCH320 20A, 10kA, Type C Triple Pole MCB

Product Description

  • Number Of Poles (Protected): 3

  • Rated Short-Circuit Breaking Capacity (En 60898) At 230 V: 10 Ka

  • Release Characteristic: C

  • Current Limiting Class: 3

  • Rated Short-Circuit Breaking Capacity (En 60898) At 400 V: 10 Ka

  • Amperage Rating: 20A

  • Frequency Rating - Max: 60 Hz

  • Width In Number Of Modular Spacings: 3

  • Rated Short-Circuit Breaking Capacity (Iec 60947-2) At 400 V: 15 Ka

  • Connectable Conductor Cross Section (Solid-Core) - Max: 25 Mm²

  • Number Of Poles (Total): 3

  • Degree Of Protection: Ip20

  • Overvoltage Category: Iii

  • Rated Short-Circuit Breaking Capacity (Iec 60947-2) At 230 V: 15 Ka

  • Ambient Operating Temperature - Max: 75 °C

  • Pollution Degree: 2

  • Connectable Conductor Cross Section (Multi-Wired) - Min: 1 Mm²

  • Rated Impulse Withstand Voltage (Uimp): 4 Kv

  • Built-In Depth: 70.5 Mm

  • Rated Switching Capacity (Iec/En 60898-1): 10 Ka

  • Connectable Conductor Cross Section (Solid-Core) - Min: 1 Mm²

  • Number Of Poles: Three-Pole

  • Rated Switching Capacity (Iec/En 60947-2): 15 Ka

  • Ambient Operating Temperature - Min: -25 °C

  • Connectable Conductor Cross Section (Multi-Wired) - Max: 25 Mm²

  • Type: Em|Miniature Circuit Breaker

  • Tripping Characteristic: C

  • Frequency Rating - Min: 50 Hz

  • Rated Operational Voltage (Ue) - Max: 400 V

  • Voltage Type: AC

  • Rated Insulation Voltage (Ui): 440

Specification

Depth

85mm

Gtin

5019586122469

Height

73mm

Product type

Commercial MCBs

Width

52.5mm
