Product Details:

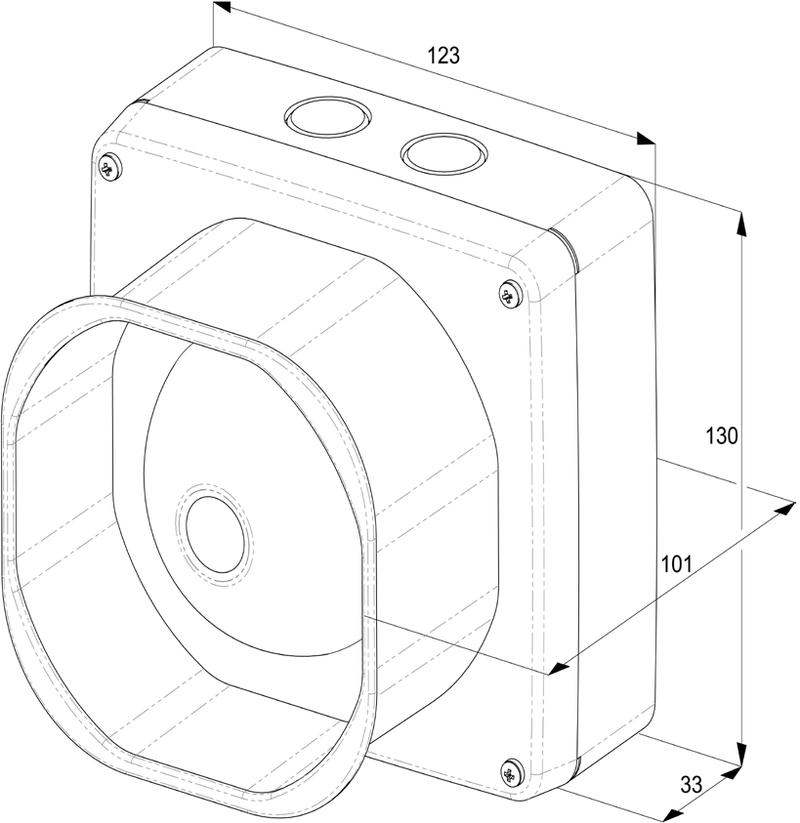

Dimensions : Width x Height: 123mm x 130mm
Depth: Standard inc base 101mm

Operating Temperature : -10°C to +50°C.

Voltage Range : 24V to 42V DC

Sounder Volume : Low: 65dB(A)+

Medium: 80dB(A)+

High: 85dB(A)

IP Rating : IP33C

System Compatibility : SITA200plus: V2.30 onwards

Duonet and Quadnet: V1 onwards


Battery Current @ 24V DC : Quiescent: 0.18mA
Active: Low Sounder 3.59mA
Active: Med Sounder 7.99mA
Active: High Sounder 11.16mA

Device Loading Unit Rating : Low Sounder: 2
Med Sounder: 4
High Sounder: 5.5
