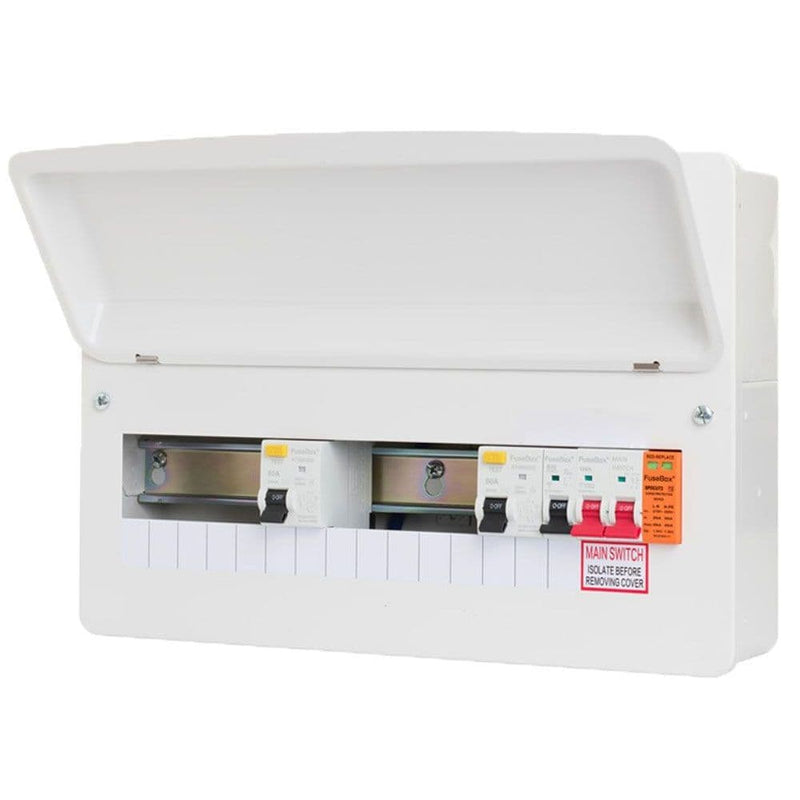

Fusebox F2016DX100 16 Way Type A Dual RCD Consumer Unit w- T2 SPD
Product Details
STANDARD | EN 61439-3 |
RATED VOLTAGE (Un/AC) | 230V |
FREQUENCY (Hz) | 50/60 |
PROTECTION DEGREE (IP) | 2XC |
MAXIMUM TERMINAL BAR CAPACITY | 16mm ² |
TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
DEVICE MOUNTING | 35mm DIN RAIL |
MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
KNOCKOUTS | SELECTION 20mm - 40mm |
ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
NUMBER OF USABLE WAYS | 16 |
PART NUMBER | F2016DX100 |
GTIN-13 | 5060523524167 |
WEIGHT (1PC) Kg | 5.5 |
DIMENSIONS (HxWxD)mm | 259x486x113 |
RCD (TYPE A) | 2x 100A 30mA |
DOUBLE BANK | N |
TAIL CLAMP COMPATIBLE (ACCF) | Y |
Specification
Gtin |
5060523524167 |
Product type |
Consumer Units |
