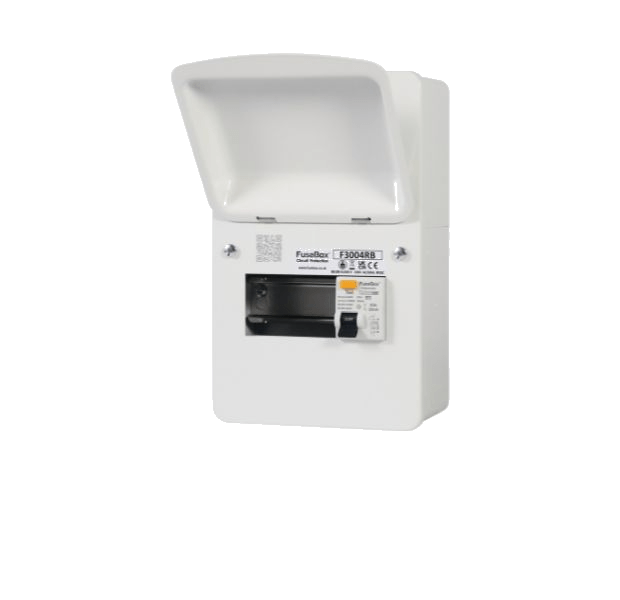

Fusebox F3004RB 4 WAY 63A 30mA RCD Consumer Unit TYPE B
Product Details
| PART NUMBER WITH T2 SPD | F3004RBÂ |
| WEIGHT (1PC) Kg | 2.9 |
| DIMENSIONS (HxWxD)mm | 263x156x116 |
| RCD RATING (TYPE A) | 63A 30mA (TYPE B) |
| TAIL CLAMP COMPATIBLE (ACCF) Y Y | Y |
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm ² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
