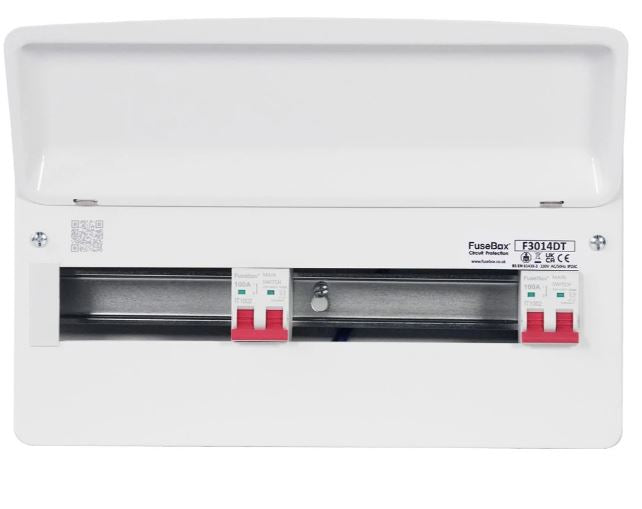

Fusebox F3014DT 14 Way Dual Tariff Consumer Unit 2x100A Main Switch (7/7)
Product Details
Â
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm ² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
| NUMBER OF USABLE WAYSÂ | 14 |
| SPLITÂ | 7/7 |
| PART NUMBERÂ | F3014DTÂ |
| GTIN-13Â | 5060523524440 |
| MAIN SWITCH RATING (AC22A)Â | 100A |
| WEIGHT (1PC) Kg | 5.1 |
| DIMENSIONS (HxWxD)mm | 259x378X113 |
| DOUBLE BANKÂ | N |
| TAIL CLAMP COMPATIBLE (ACCF)Â | N |
