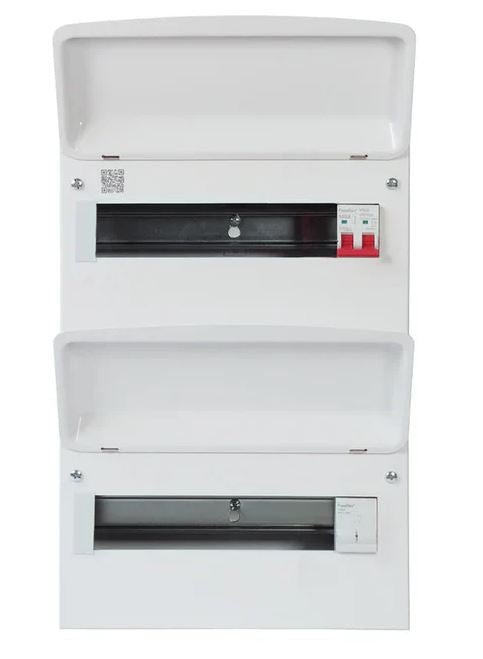

Fusebox F3032M 32-way (16/16) (100A Main Switch) Double Bank

Fusebox F3032M 32 - way (16/16) (100A Main Switch) Double Bank - Fusebox - Falcon Electrical
Roll over image to zoom in Click on image to zoom
Fusebox F3032M 32 - way (16/16) (100A Main Switch) Double Bank - Fusebox - Falcon Electrical

Fusebox F3032M 32-way (16/16) (100A Main Switch) Double Bank

Fusebox
Add RCBO's (Type A, B Curve): No RCBO
£148.47For 1
£178.16 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Fusebox F3032M 32-way (16/16) (100A Main Switch) Double Bank

Product Details

NUMBER OF USABLE WAYS  32
PART NUMBER WITH T2 SPD  F3032M
WEIGHT (1PC) Kg  8
DIMENSIONS (HxWxD)mm  512x378x113
DOUBLE BANK  Y
TAIL CLAMP COMPATIBLE (ACCF)  Y
STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
