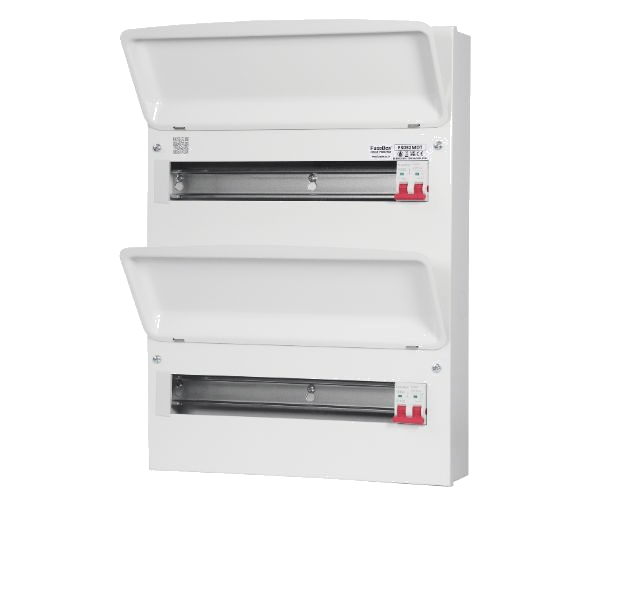

Fusebox F3032MDT 32 Way Consumer Unit (16/16) 2- 100A Main Switch
Product Details
|
STANDARD |
EN 61439-3 |
|
RATED VOLTAGE (Un/AC) |
230V |
|
FREQUENCY (Hz) |
50/60 |
|
PROTECTION DEGREE (IP) |
2XC |
|
MAXIMUM TERMINAL BAR CAPACITY |
16mm ² |
|
TERMINAL BAR TIGHTENING TORQUE (Nm) |
2 |
|
DEVICE MOUNTING |
35mm DIN RAIL |
|
MATERIAL |
1mm ELECTRO GALVANISED STEEL (ZINC) |
|
FINISH |
RAL 9001 POWDER COATED SMOOTH FINISH |
|
KNOCKOUTS |
SELECTION 20mm - 40mm |
|
ACCESSORY PACK |
CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
|
NUMBER OF USABLE WAYSÂ |
32 |
|
SPLITÂ |
16/16 |
|
PART NUMBERÂ |
F3032MDTÂ |
|
GTIN-13Â |
5060523526680 |
|
MAIN SWITCH RATING (AC22A)Â |
100A |
|
WEIGHT (1PC) Kg |
8.1 |
|
DIMENSIONS (HxWxD)mm |
512x378x113 |
|
DOUBLE BANKÂ |
Y |
|
TAIL CLAMP COMPATIBLE (ACCF)Â |
Y |
