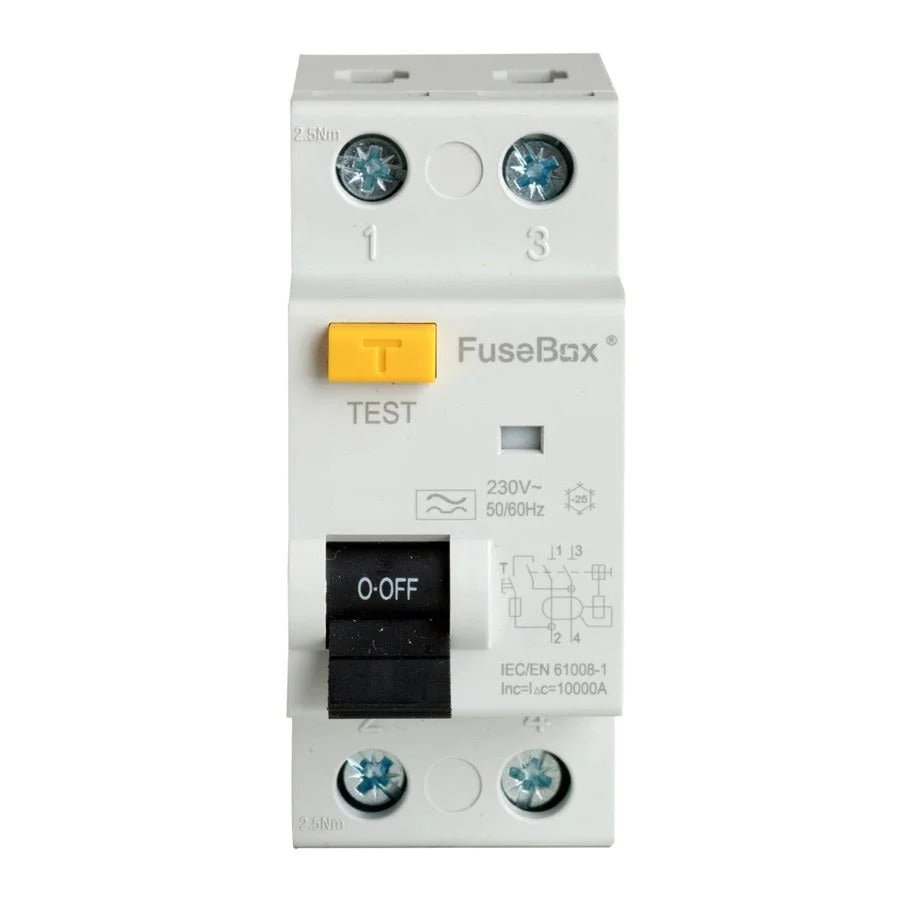

Fusebox RTA400302 40A 30mA Type A RCD
Product Details
| RATING (A) | 40 |
| RATED RESIDUAL OPERATING CURRENT (IΔn) | 30mA |
| TYPE | A |
| STANDARD | EN/IEC 61008-1 |
| NUMBER OF POLES | 2P |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 25A |
| RESIDUAL CURRENT CHARACTERISTICS | TYPE A (AC and Pulsating DC up to 6mA) |
| RATED RESIDUAL OPERATING CURRENT (IΔn) | |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 25mm ² (UP TO 80A) / 35mm ² (100A) |
| RECOMMENDED TIGHTENING TORQUE (Nm) | 2.5Nm |
| Poles are not polarity sensitive (i.e. Neutral can be connected on the LHS and Line on RHS or vice versa). | |
| RCDs can be connected with the LOAD to the top or the bottom. | |
| MOUNTING | 35mm din rail |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.23 |
