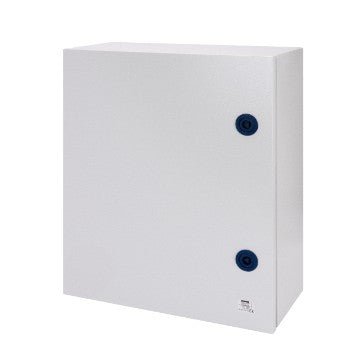

Gewiss GW46036 585X800X300mm Metal Enclosure w- Blank Door & Lock

Gewiss GW46036 585X800X300mm Metal Enclosure w- Blank Door & Lock


Sale price£0.00For 1
£0.00 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Gewiss GW46036 585X800X300mm Metal Enclosure w- Blank Door & Lock

Product Details

  • Insulation class: Pre-arranged with earth terminal

  • Colour: Grey RAL 7035

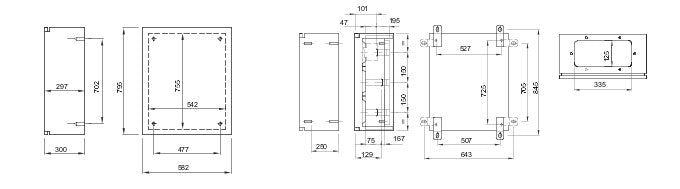

  • Nominal dim. LxHxD (mm): 585x800x300

  • IP degree: IP55

  • Material: Sheet metal from 10/10 to 15/10, painted with epoxy-polyester powders

  • Mechanical resistance: IK10

  • No. locks: 2

  • No. of modules EN 50022: 140 (28x4)

  • Application: For indoor use

  • Dispersible power A (W): 240

  • Dispersible power B (W): 159

  • Functional dim. LxHxD (mm): 585x800x300

  • Operating temperature: -25 +60 °C

  • Type of material: Metal

  • Electrocod: 0320

  • Standard: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

  • Family: 46 QM

  • Maximum rated insulation voltage (Ui): 690 V

  • Type of door: Blank door

Specification

Gtin

8011564096868

Product type

Consumer Units and Enclosures
