Product Details

• Insulation class: Pre-arranged with earth terminal

• Colour: Grey RAL 7035

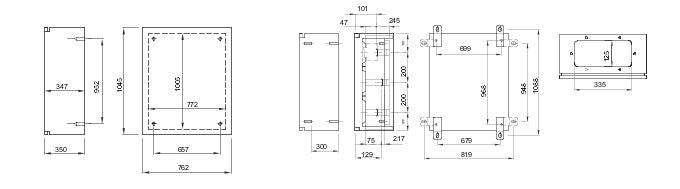

• Nominal dim. LxHxD (mm): 800x1060x350

• IP degree: IP55

• Material: Sheet metal from 10/10 to 15/10, painted with epoxy-polyester powders

• Mechanical resistance: IK10

• No. locks: 2

• No. of modules EN 50022: 180 (36x5)

• Application: For indoor use

• Dispersible power A (W): 400

• Dispersible power B (W): 284

• Functional dim. LxHxD (mm): 800x1060x350

• Operating temperature: -25 +60 °C

• Type of material: Metal

• Electrocod: 0320

• Standard: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24

• Family: 46 QM

• Maximum rated insulation voltage (Ui): 690 V

• Type of door: Blank door
