Gewiss GW60404 2P+E, 16A, 90° Angled Surface Mounting Inlet 200-250V, 6H

Gewiss GW60404 2P+E, 16A, 90° Angled Surface Mounting Inlet 200-250V, 6H


Sale price£5.69For 1
£6.83 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

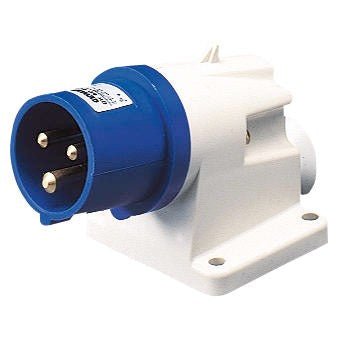

Gewiss GW60404 2P+E, 16A, 90° Angled Surface Mounting Inlet 200-250V, 6H

Product Details

  • Colour: Blue

  • Rated current (A): 16

  • IP degree: IP44

  • No. of poles: 2P+E

  • Type: 90° angled surface mounting inlet

  • Type of wiring:With screw

  • Thermo-pressure with ball: 125 °C (active parts) - 80 °C (passive parts)

  • Mechanical resistance: IK08

  • Reference: 6H

  • Rated voltage: 200 - 250 V

  • Frequency: 50/60 Hz

  • Operating temperature: -25 +55 °C

  • Electrocod: 2230

  • Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

  • Total number of operations: > 5000

  • Permissible overload: 22 A

  • Breaking capacity at 1.1 Un: 20 A

  • Insulation resistance: > 10 MΩ

Specification

Gtin

8011564010314

Product type

Industrial Wiring Accessories
