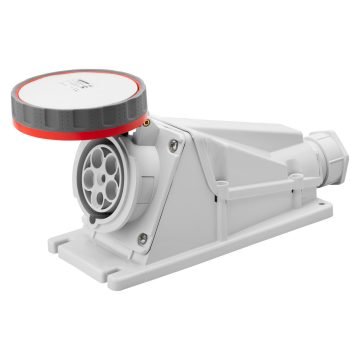

Gewiss GW63527 90°, 63A, 3P+N+E Angled Surface Mounting Socket 6H Outlet 380-415V

Gewiss GW63527 90°, 63A, 3P+N+E Angled Surface Mounting Socket 6H Outlet 380-415V


Sale price£49.50For 1
£59.40 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Gewiss GW63527 90°, 63A, 3P+N+E Angled Surface Mounting Socket 6H Outlet 380-415V

Product Details

  • Colour: Red

  • Rated current (A): 63

  • IP degree: IP67

  • No. of poles: 3P+N+E

  • Mechanical resistance: IK08

  • Reference: 6H

  • Type: 90° angled surface-mounting socket-outlet

  • Rated voltage: 380 - 415 V

  • Frequency: 50/60 Hz

  • Terminal tightening capacity: 6-16mm² flexible cables - 6-25mm² rigid cables

  • Operating temperature: -25 +55 °C

  • Type of wiring: With screw

  • Electrocod: 2211

  • Glow wire test: 850 °C (active parts) - 650 °C (passive parts)

  • Total number of operations: > 2000

  • Breaking capacity at 1.1 Un: 79 A

  • Insulation resistance: > 10 MΩ

Specification

Gtin

8011564024144

Product type

Industrial Wiring Accessories
