Product Details

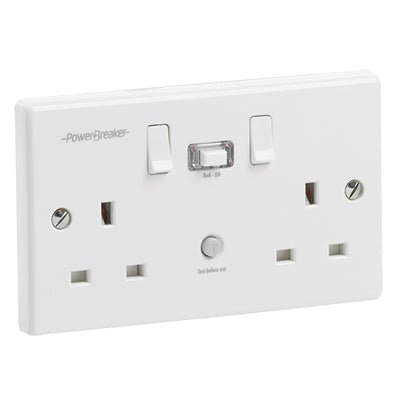

• Twin sockets fitted with twin earth terminals

• Responsive to pulsating DC earth fault currents

• Maximum operating current 13A Resistive, 3A Inductive

• 30mA trip current

• Illuminated mechanical trip indicator

• Voltage: 230V AC ~ 50Hz

• Trip speed - less than 20mS (typical)

• Rated trip current - 30mA

• Mechanically latched

• White moulded polycarbonate front plate

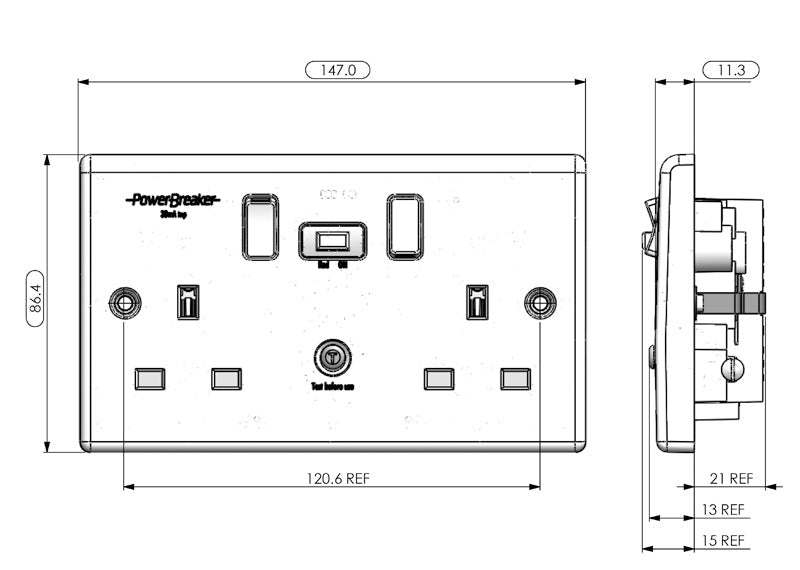

• Dimensions:147 x 86.4 x 11.3mm

• Conforms to :BS 7288:1990 Amd 1,and BS 1363-2:1995 Amd 1-3

EMC Emissions - EN 55014-1:2006 & EN 55014-1:2000 inc A1:2001 & A2:2002

EMC Immunity - EN 61543:1995 inc A11:2003, A12:2005 & A2:2006
