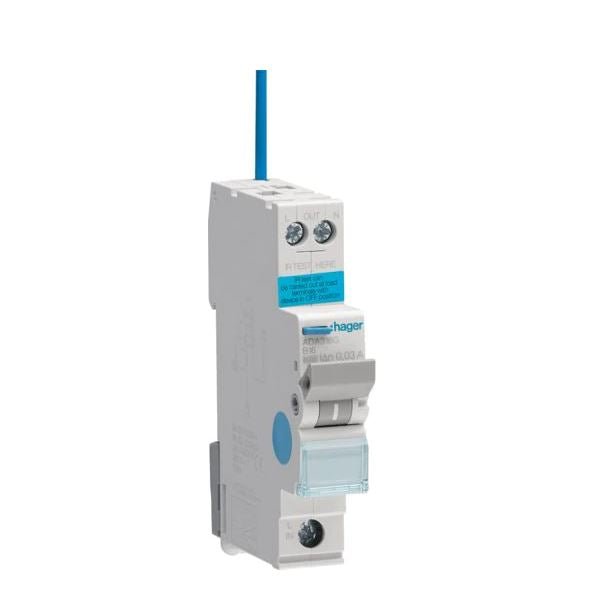

Hager ADA316G 16A, 1-Pole, 6kA B-Curve RCBO

Hager ADA316G 16A, 1-Pole, 6kA B-Curve RCBO


Sale price£12.95For 1
£15.54 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Hager ADA316G 16A, 1-Pole, 6kA B-Curve RCBO

Product Details

  • Neutral position: right

  • Number of poles: 1P

  • Fixing mode: DIN rail type O (symmetrical)

  • Curve: B

  • Rated operational voltage Ue: 230 V

  • Frequency: 50 Hz

  • Rated current: 16A

  • Type of supply voltage: AC

  • Rated insulation voltage: 250 V

  • Max operating voltage: 253 V

  • Rated impulse withstand voltage: 4000 V

  • Rated residual operating current: 30 mA

  • Breaking and opening capacity: 4.5 kA

  • 6A to Dimensions (HxWxD): 92 x 17.7 x 70 mm

  • Total power loss under IN: 1.72 W

  • Electric endurance in number of cycles: 16000

  • Number of mechanical operations: 20000

  • Standard text
    • EN 61009-1
    • IEC 61009-2-2

  • Protection index: IP IP20

  • Residual current type: A

  • Operating temperature: -20…70 °C

Specification

Amps ii

16

Depth

70mm

Gtin

3250611012979

Height

92mm

Internal external

Internal

Product type

Cons. Unit RCBOs

Width

17.7mm
