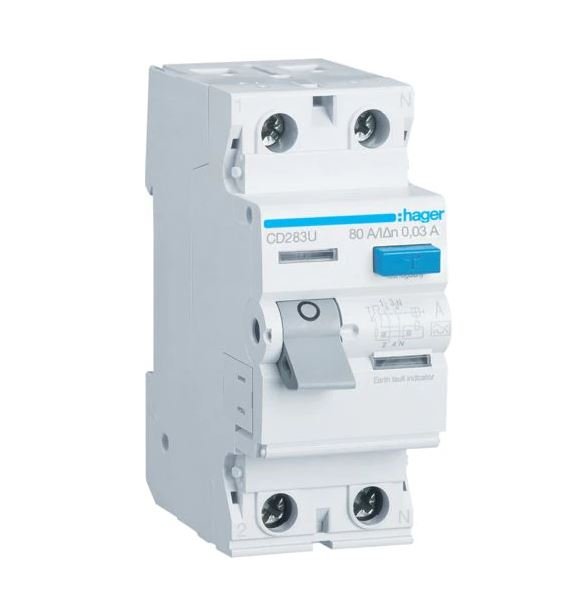

Product Details

• Neutral position: right

• Number of poles: 2P

• Fixing mode: DIN rail type O (symmetrical)

• Rated operational voltage Ue: 230 V

• Frequency: 50 Hz

• Rated current: 80A

• Type of supply voltage: AC

• Rated insulation voltage: 500 V

• Rated impulse withstand voltage: 4000 V

• Rated residual operating current: 30 mA

• Breaking and opening capacity: 1.5 kA

• 6A to Dimensions (HxWxD): 83 x 35 x 70 mm

• Total power loss under IN: 1.72 W

• Electric endurance in number of cycles: 2000

• Number of mechanical operations: 4000

• Tightening torque: 2,8Nm


• Connection cross-sect. flexible conductor: 16mm ²


• Connection cross-sect. rigid cable: 25mm ²

• Standard text
  • EN 61009-1

• • IEC 61009-2-2

• Protection index: IP IP20

• Residual current type: A

• Operating temperature: -20…70 °C
