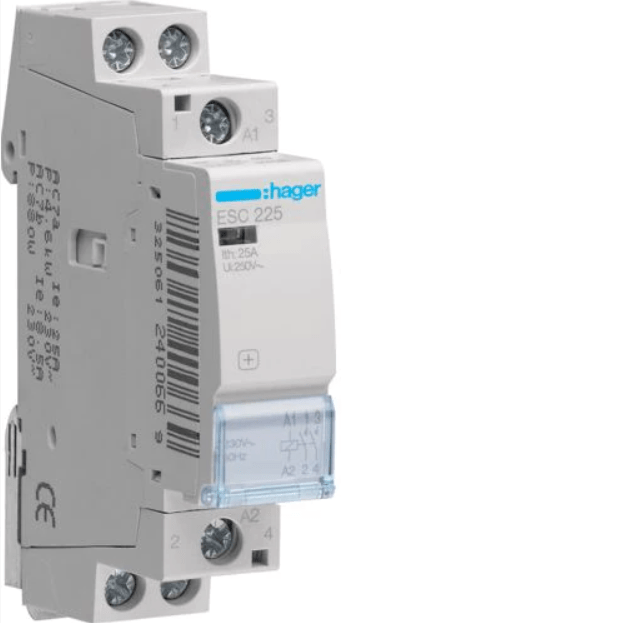

Hager ESC225 25A, 2-NO Contactor

Hager ESC225 25A, 2-NO Contactor


Sale price£40.41For 1
£48.49 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Hager ESC225 25A, 2-NO Contactor

Product Details

  • Rated operational voltage Ue: 230 V

  • Frequency: 50 Hz

  • Rated current: 25 A

  • Rated insulation voltage: 250 V

  • Rated impulse withstand voltage: 4 kV

  • Depth of installed product: 60 mm
  • Height of installed product: 83 mm
  • Width of installed product: 17,85 mm

  • Total power loss under IN: 5,9 W

  • Power dissipation per coil: 2,9 W

  • Electric endurance in number of cycles: 30000

  • Number of mechanical operations: 100000

  • Number of modules 1

  • Max. power with fluorescent parallel lamps: 810 VA

  • Max. power with incandescent lamps: 1900 W

  • Tightening torque: 1,2Nm

  • Connection cross-sect. flexible conductor: 1 / 6mm ²

  • Connection cross-sect. rigid cable: 1 / 10mm ²

  • Type of connection: with screw

  • Type of contacts: 2NO

  • Can be accessorized: Yes

  • European directive WEEE: concerned

  • Protection index IP: IP2X

Specification

Depth

60mm

Gtin

3250612400669

Height

83mm

Internal external

Internal

Product type

RCD Units

Width

17.85mm
