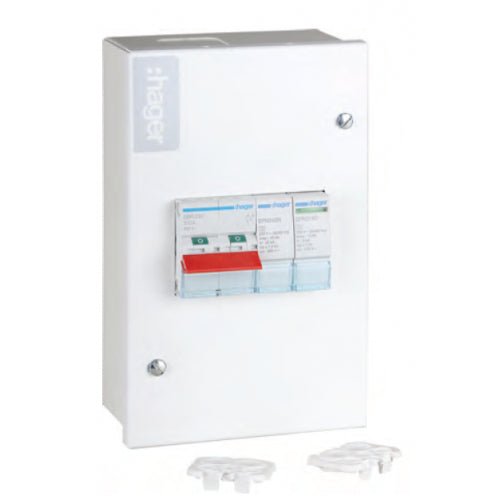

Hager VA4T2SDSPD Type II SPD Enclosure w- 100A Main Switch
Technical Details
- Rated Current: 100A
- Neutral Position (Main Switch): Right
- Poles: 2 poles
- Dimensions (HxWxD): 187 x 115 x 87.5mm
- Number of rows: 1
- Rated Frequency: 50 / 60 Hz
- Rated operational voltage: 230V
- Max discharge (Imax) or impulse (Iimp): 15 kA
- Nominal discharge current (In): 5 kA
- Voltage protection level Up according to IEC 61643-1: 1 kV
- Voltage continuous operating voltage Uc: 275 V
- Connection Capacity: 35mm ²
- Materals: Steel
- Number of rows: 1
- IP Protection: IP2XC
Specification
Consumer unit type |
Enclosure |
Depth |
87.5mm |
Enclosure material |
Metal |
Flexible configuration |
No |
Gtin |
5015652606703 |
Height |
187mm |
Internal external |
Internal |
Number of incoming ways |
4 |
Populated |
No |
Product type |
Consumer Units and Enclosures |
Width |
115mm |
