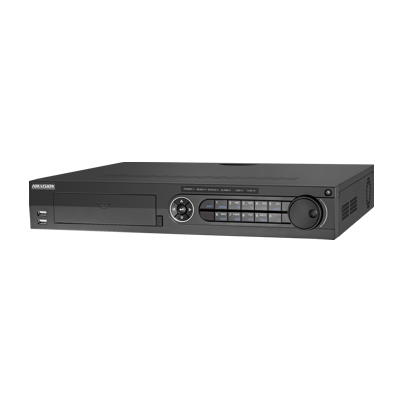

Hikvision DS-7316HUHI-K4 16-channel Multi-Output DVR
For 2 way audio requirements please contact our tech team before purchasing
- Connectable to HD-TVI, AHD, IP, CVI & analogue cameras
- Up to 18-ch 8MP IP cameras input (substituting 16ch of TVI)
- Long distance transmission over twisted pair cable & coax cable
- H.265+ compression improves encoding effiency by up to 50% & reduces data storage costs
- 25fps recording at 2MP, 18fps recording at 3MP, 15fps recording on 4MP & 12fps recording on 5MP, 8fps reocrding at 8MP
- Simultaneous HDMI 1 & VGA output at up to 1920 x 1080 resolution, and independent HDMI 2 output at up to 4K (3840 x 2160)
- Dual gigabit network interfaces
- Smart search for efficient playback
Specification
Alarm inout |
16/4 |
Audio inout |
4/2 |
Box quantity |
2 |
Channels |
16 |
Codec |
H.265+ |
Gtin |
6954273652821 |
Internal external |
External |
Max hdd capacity |
Up to 24TB |
Max record resolution |
8MP |
Monitor outputs |
HDMI/VGA, HDMI 2, BNC |
Poe ports |
N/A |
Product type |
Recorder |
Wdr |
Yes |
