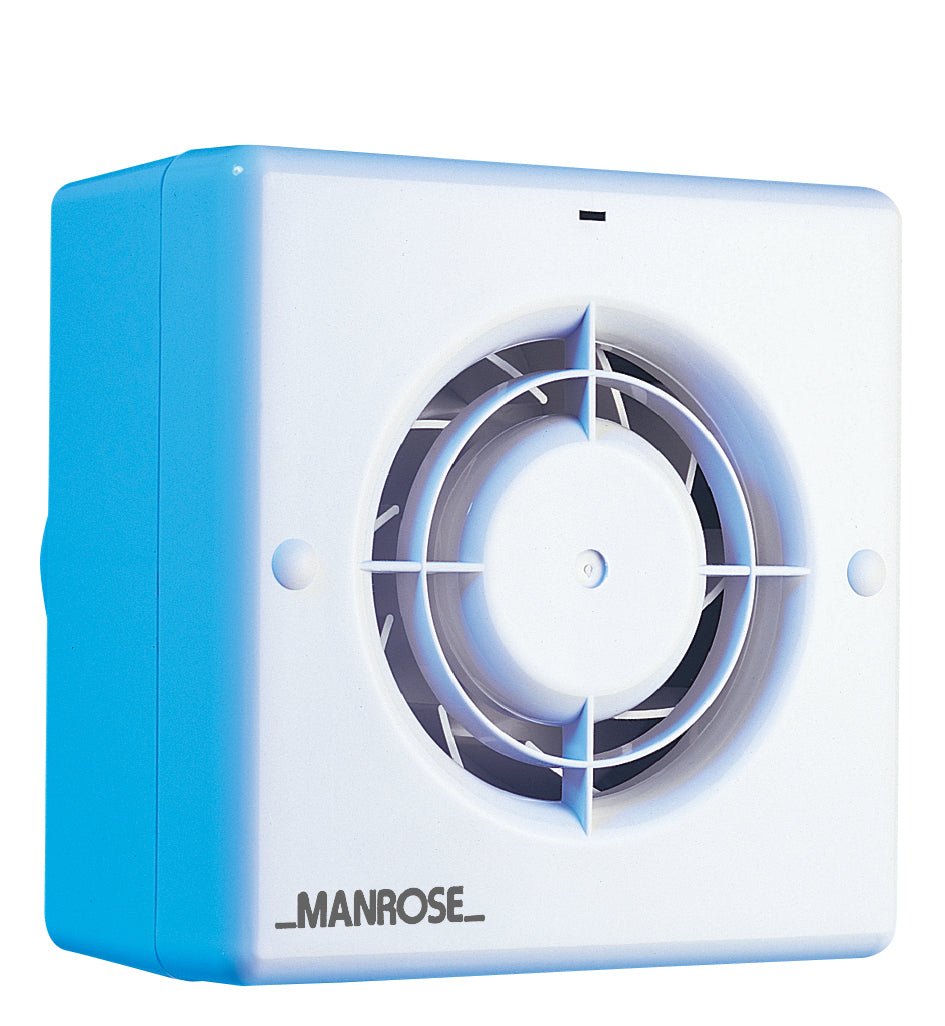

Manrose CF100H -100mm centrifugal bathroom fan -humidity control
- The CF100 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF100 ranges are designed for bathrooms, toilets, cloakrooms and utility rooms.
- Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.
- All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.
- There are seven models in each series. The CF100 has an extract rate of 90m ³/hr 25 litres per second.
- The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Power to the CF100 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
- Designed to comply with the Building Regulations on Ventilation (F1).
| IP Rating: | IP44 |
| Number of Speeds: | 1 |
| Sound dB(A) @ 3m: | 42 |
| Power 1 (W): | 20 |
| Width (mm): | 163 |
| Height (mm): | 163 |
| Depth (mm): | 155 |
| Spigot Diameter (mm): | 100 |
| Colour: | White |
| Shutter Type: Spring Return | Spring Return |
| Max Humidity (%): | 95 |
| Max Timer (Minutes): | 20 |
Specification
Control type |
Humidistat |
Depth |
155mm |
Enclosure material |
Plastic |
Fan size |
4" |
Fan type |
Centrifugal |
Gtin |
5020953550587 |
Height |
163mm |
Internal external |
Internal |
Mounting options |
Ceiling;Wall |
Product type |
Ventilation |
Width |
163mm |
