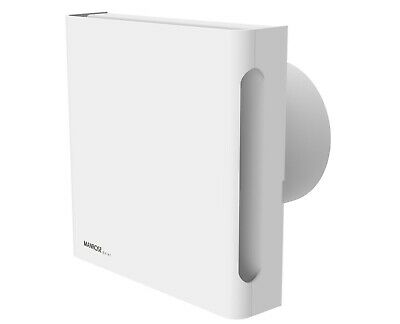

Manrose QF100HTX5CON 100mm Concealed Bathroom Fan w- Humidistat & Timer, IPX5
Product Description
The Manrose Quiet Fan Conceal is the latest in domestic ventilation to incorporate a high extraction rate whilst producing an incredibly quiet running volume all with the additional flexibility of being IPX5 compliant. IEE Regulations (U.K.) allow for IPX5 fans to be installed into zone 1 without the need for low voltage transformer making this comprehensive range ideal for bathrooms and toilets.
The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output.
Product Details
- IPX5 rated
- Humidity adjustable between 40%-90% rH
- Adjustable run on timer (5-30mins)
- High quality, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
- Manufactured using high gloss ABS thermoplastics for strength and durability
- Decibel Level of ONLY 28dB(A) at 3m. Over 60% reduction in comparison to standard 4-(100mm) domestic fans.
- An impressive extraction rate of 75m3/hr, 21 litres per second
- Low energy motor with a maximum consumption of 6 Watts
- Low SFP of just 0.29W/l/s
- Complete with integral backdraught shutters
- Complies with both Part F & L
- Dimensions (HxWxD): 160mm x 160mm x 40mm (protrusion from wall)
Specification
Control type |
Humidistat & Timer |
Depth |
40 |
Fan type |
Shower fan |
Gtin |
5020953086468 |
Height |
160mm |
Internal external |
Internal |
Mounting options |
Recess |
Product type |
Ventilation |
Width |
160mm |
