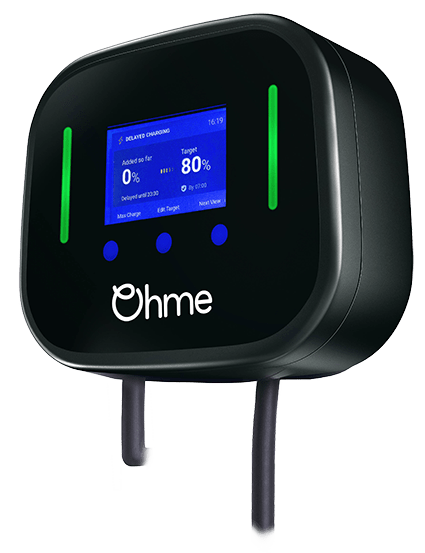

Product Overview

• 7.4kW of power, faster than a 3-pin plug, perfect for overnight charging
• Integrates with all energy providers, including Octopus & OVO smart EV tariffs
• Control your charging sessions via the Ohme smartphone app or the buttons or the charger
• Solar compatible - drivers can fill up their car with excess solar generation

Electrical Specification

• Power rating: 7.4kW

• Rated current: 32A max

• Nominal supply: 230V AC, 50/60 HZ, single-phase

• Supply connections: L+N+E 6mm2

• Overcurrent protection: Not fitted, to be fitted separately

• Earth leakage protection: RCD Type A 30 mA with integral 6 mA DC, built-in  protective earth neutral (PEN) fault detector

• Status indication: 3 colour LED indication strip (green, blue, red), LCD screen (blue, red)

• Charging mode: Mode 3

• Socket: 8 metre tethered unit with Type 2 plug
  Supply cable entry: Cable entry through the rear or underside of the unit, suitable for up to 6mm2 conductor size. 25mm gland and a blanking grommet is provided

Mechanical Specification

• Dimensions (H/W/D): 170mm x 200mm x 100mm

• Unit weight: 4kg (shipping weight: 4.4kg)

• Mounting location: Wall or post mounted, indoor or outdoor

• Operating temperature: -25°C to 45°C

• Storage temperature: -40°C to 85°C

• Operating humidity: 5 - 95% RH

• Enclosure: PC6600, UV Stabilised (f1 UL 746C), Fire Rated (V-0 UL94)

• Ingress protection rating: IP55

• Impact rating: IK08

• Standard finish: Black

Connectivity & technology specs

• Connectivity:  3G/4G multinet sim card (cost covered by Ohme for the first 3 years)

• Network connection: Automatic network connection through 4G mobile phone network

• Control: Via the three buttons on the charger or via the Ohme smartphone app

• Technology: Dynamic load balancing and solar charging enabled with a working CT clamp

• Upgrades: Over-the-air firmware & software upgrades
