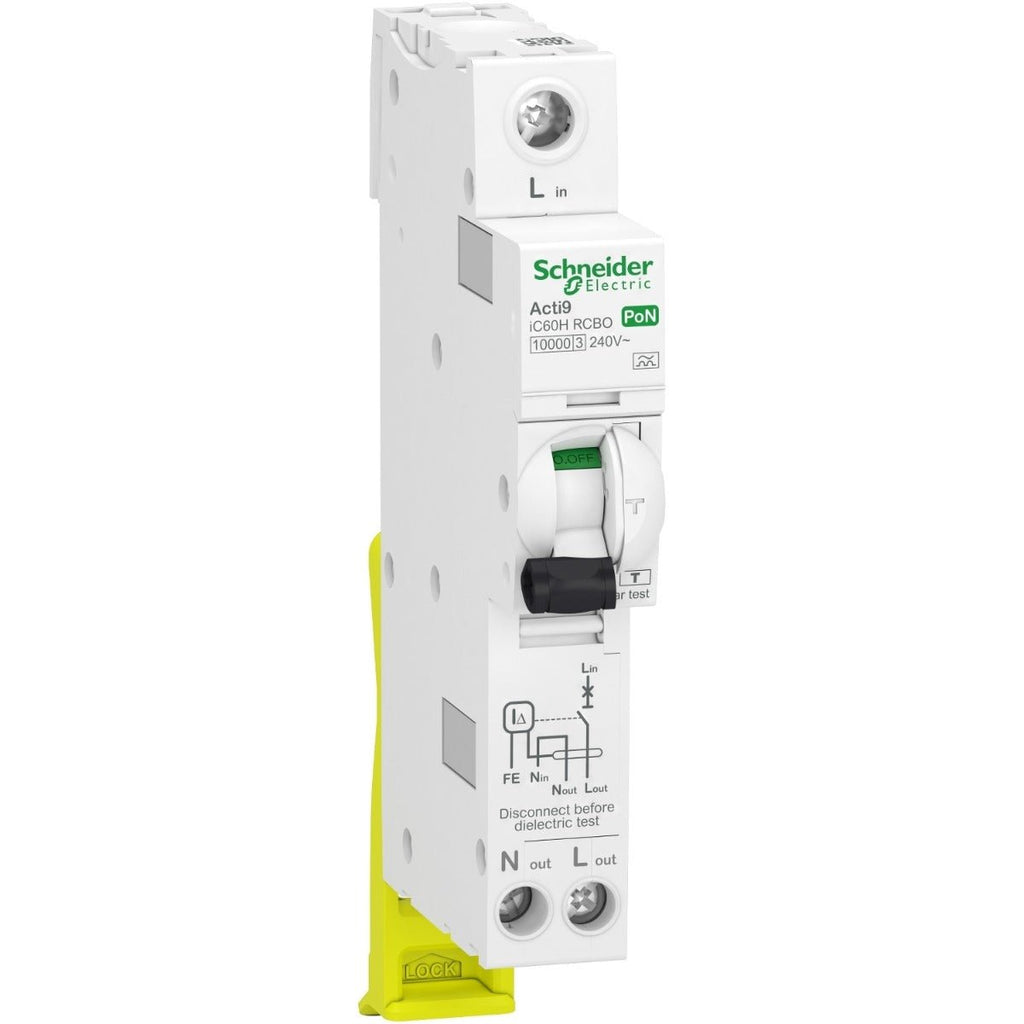

Product Description

• poles description: 1P + Ns

• [In] rated current: 6 A at 50 °C

• earthing system: TN

• curve code: C

• earth-leakage sensitivity: 30 mA

• breaking capacity: 10000 A Icn at 240 V AC

• 50/60 Hz conforming to IEC 61009-2-2

• neutral position: Left

• number of protected poles: 1

• device location in system: Outgoer

• network frequency: 50/60 Hz

• network type: AC

• trip unit technology: Thermal-magnetic

• magnetic tripping limit: 5...10 x In

• [Ue] rated operational voltage: 240 V AC 50/60 Hz

• comb busbar and distribution block compatibility: NO


• 9 mm pitches: 2


• height: 110 mm


• width: 18 mm


• depth: 72 mm


• net weight: 156 g


• Control type: Toggle

• Green Premium product

• Standards:

  • BS EN 61009-1

  • IEC 61009-1

  • IEC 61009-2-2


• Product certifications: CB


• IP degree of protection:

  • IP20 conforming to IEC 60529

  • IP40 (modular enclosure) conforming to IEC 60529
