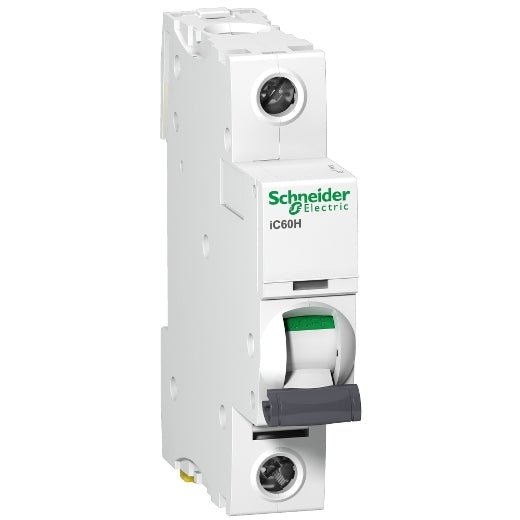

Schneider A9F55110 Acti9 iC60H 1P 10A D-Curve MCB

Schneider A9F55110 Acti9 iC60H 1P 10A D-Curve MCB


Sale price£14.92For 1
£17.90 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Schneider A9F55110 Acti9 iC60H 1P 10A D-Curve MCB

Product Description

  • poles description: 1P

  • number of protected poles: 1

  • [In] rated current: 10A

  • network type: AC

  • trip unit technology: Thermal-magnetic

  • curve code: D

  • breaking capacity
    • 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
    • 70 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
    • 70 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
    • 20 kA Icu at 12...48 V DC conforming to EN/IEC 60947-2
    • 10 kA Icu at 72 V DC conforming to EN/IEC 60947-2
    • 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1

  • network frequency: 50/60 Hz

  • [Ue] rated operational voltage: 240 V AC 50/60 Hz

  • magnetic tripping limit: 12 x In +/- 20 %

  • limitation class: 3 conforming to EN/IEC 60947-2

  • [Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN/IEC 60947-2

  • [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2

  • contact position indicator: Yes

  • control type: Toggle

  • local signalling: Trip indicator

  • mounting mode: Clip-on

  • mounting support: Rail

  • 9 mm pitches: 2

  • height: 85 mm
  • width: 18 mm
  • depth: 78.5 mm

  • net weight: 0.125 kg

  • provision for padlocking: Padlockable

  • connections - terminals:
    • Single terminal (top or bottom) 1…25 mm ² rigid
    • Single terminal (top or bottom) 1…16 mm ² flexible

  • wire stripping length: 14 mm for top or bottom connection

  • tightening torque: 2 N.m top or bottom

  • earth-leakage protection: Separate block
    standards:
    • EN/IEC 60947-2
    • EN/IEC 60898-1

  • IP degree of protection: IP20 conforming to IEC 60529

Specification

Gtin

3606480515200

Product type

Commercial MCBs
