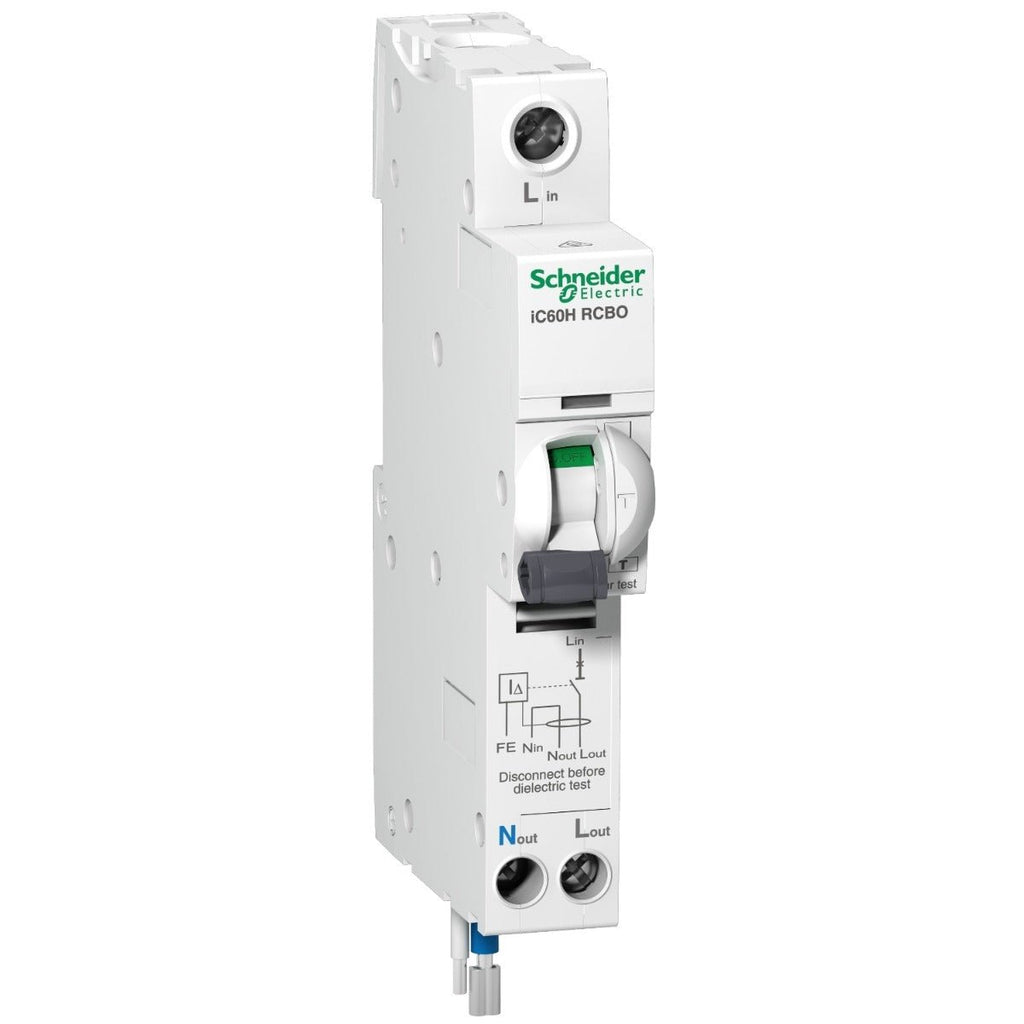

Schneider Electric A9D11806 iC60H 6A 1P + N, C-curve 30mA RCBO

Schneider Electric A9D11806 iC60H 6A 1P + N, C-curve 30mA RCBO


Sale price£55.50For 1
£66.60 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Schneider Electric A9D11806 iC60H 6A 1P + N, C-curve 30mA RCBO

Product details

  • Poles description: 1P + N

  • [in] rated current: 6 a at 50 °c

  • Earthing system: TN

  • Curve code: C

  • Earth-leakage sensitivity: 30 MA

  • Breaking capacity: 10000 a icn at 230/240 v ac 50/60 hz

  • Neutral position: left

  • Number of protected poles: 1

  • Device location in system: outgoer

  • Network frequency: 50 hz

  • Network type: AC

  • Trip unit technology: thermal-magnetic

  • [ue] rated operational voltage: 230/240 v ac 50/60 hz

  • Residual current tripping technology: voltage dependent

  • Earth-leakage protection time delay: instantaneous

  • Earth-leakage protection class: Type A

  • [icw] rated short-time withstand current: icw: 250 a during 8/20 µs impulse withstand

  • [ics] rated service breaking capacity: 7500 a at 230/240 v ac 50/60 hz

  • Limitation class: 3

  • [ui] rated insulation voltage: 400 v ac 50/60 hz

  • [uimp] rated impulse withstand voltage: 4 kv

  • Surge current: 250A

  • Suitability for isolation: yes

  • Contact position indicator: yes

  • Control type: toggle

  • Local signalling: on/off indication

  • Mounting mode: clip-on

  • Mounting support: din rail

  • Comb busbar and distribution block compatibility: no

  • 9 mm pitches: 2

  • Height: 110 mm
  • Width: 18 mm
  • Depth: 77.5 mm

  • Net weight: 205 g

  • Colour: white

  • Mechanical durability: 20000 cycles

  • Electrical durability: 5000 cycles

  • Provision for padlocking: padlockable with padlock ø 4 mm

  • Standards: iec 61009-1
    • As/nzs 61009.1
    • Iec 61009-2-2
    • Bs en 61009-1

  • IP degree of protection: ip20
