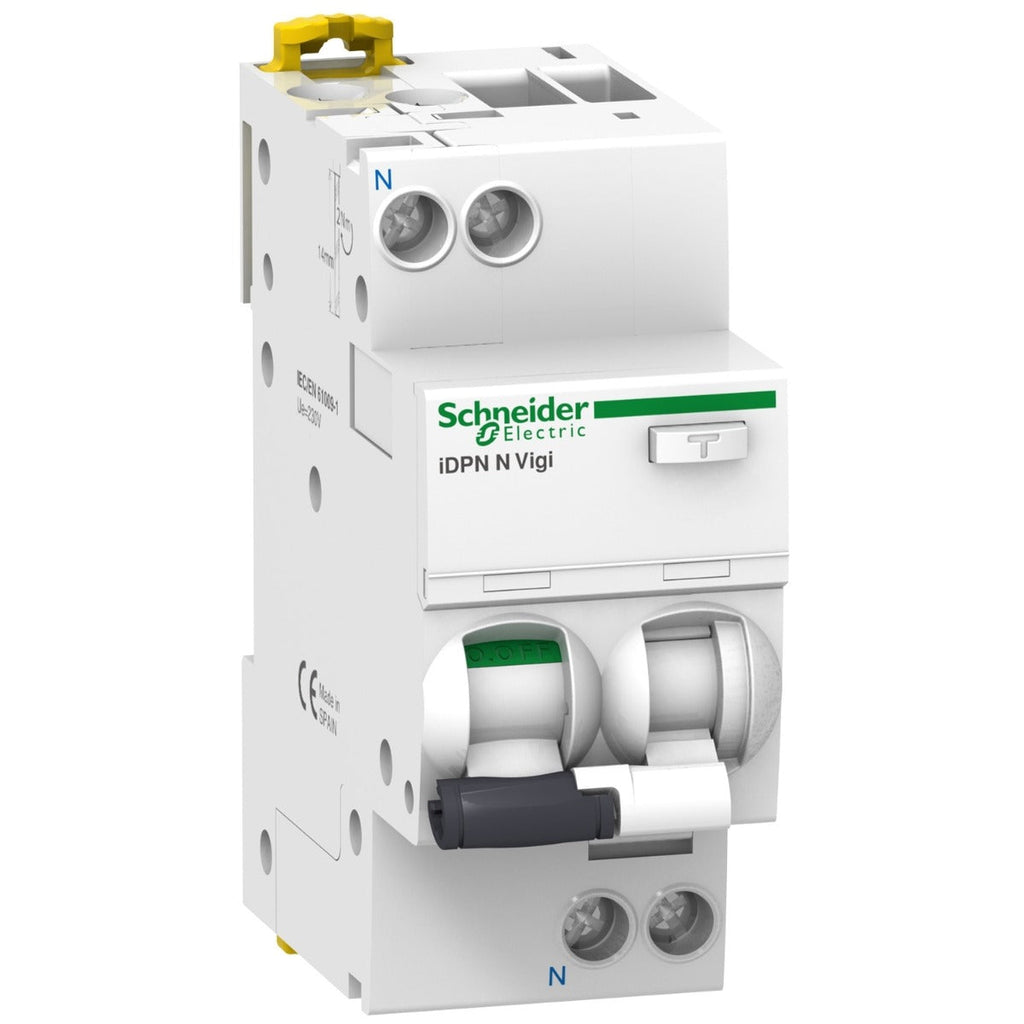

Product details





• Poles description: 1P + N



• [in] rated current: 6A



• Earthing system: TN



• Number of protected poles: 1




• Neutral position: Left



• Curve code: B



• Earth-leakage sensitivity: 30 mA



• Breaking capacity: 6000A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1



• Neutral position: left



• Number of protected poles: 1



• Device location in system: outgoer



• Network frequency: 50 hz



• Network type: AC



• Trip unit technology: thermal-magnetic



• Magnetic tripping limit: 3...5 x In



• [ue] rated operational voltage: 220...240 v ac 50/60 hz



• [Ics] rated service breaking capacity: 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1




• Rated breaking and making capacity: Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1



• Residual current tripping technology: voltage dependent



• Earth-leakage protection time delay: instantaneous



• Earth-leakage protection class: Type A



• [icw] rated short-time withstand current: icw: 250 a during 8/20 µs impulse withstand



• [ics] rated service breaking capacity: 6000 a at 230/240 v ac 50/60 hz



• Limitation class: 3 conforming to EN/IEC 61009-2-1



• [ui] rated insulation voltage: 400 v ac 50 hz



• [uimp] rated impulse withstand voltage: 4 kv



• Surge current: 250A



• Suitability for isolation: yes



• Contact position indicator: yes



• Control type: toggle



• Local signalling: on/off indication



• Mounting mode: clip-on



• Mounting support: din rail



• Comb busbar and distribution block compatibility: no



• 9 mm pitches: 2



• Height: 110 mm
• Width: 18 mm
• Depth: 77.5 mm



• Net weight: 205 g



• Colour: white



• Mechanical durability: 20000 cycles



• Electrical durability: 5000 cycles



• Provision for padlocking: padlockable with padlock ø 4 mm



• Standards: iec 61009-1
  • As/nzs 61009.1
  • Iec 61009-2-2
  • Bs en 61009-1



• IP degree of protection: IP20
