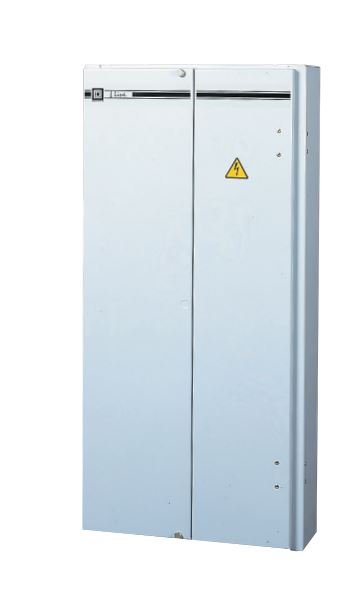

Schneider Electric MP40071 21 Module, 400A I-Line MCCB PanelBoard
Product Details
- Dimensions (HxWxD): 1170x680x258mm
- Weight: 51kg
- Current Rating: 400A
- Triple Pole Ways: 7
- Single Pole Ways: 3
- Standards: BS EN 60439
- Single sided to give best possible space utilisation
- Incomers can be mounted at top or bottom of the panelboard
- Ample cabling space
- I-line busbar system
- Degree of protection IP3X
- Hinged lift off cable way cover
- Fully rated earth and neutral bars
- Removable top and bottom gland plates
- Busbar rating 50ka for 1s
Specification
Depth |
258mm |
Dis board amps |
400A |
Dis board type |
Triple Pole |
Gtin |
5018934660455 |
Height |
1170mm |
Product type |
Commercial PanelBoards |
Single pole ways |
3 |
Triple pole ways |
7 |
Width |
680mm |
