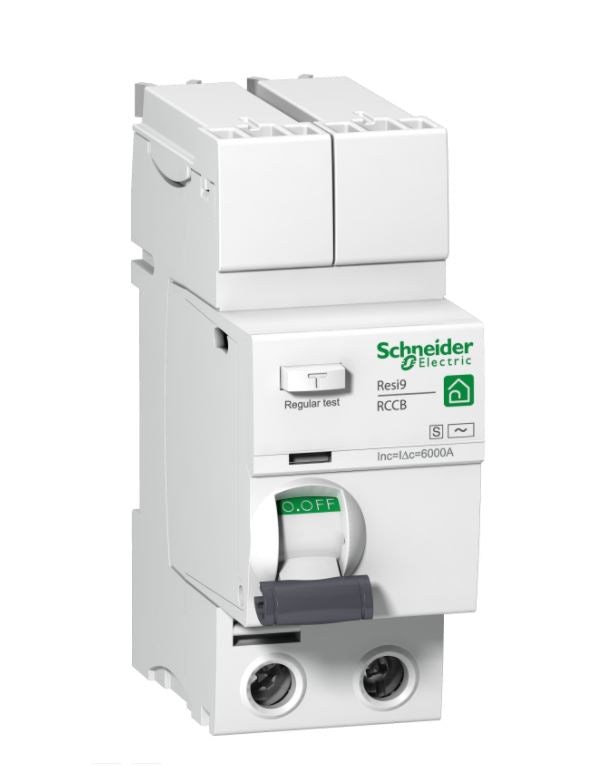

Schneider Electric R9R81291 100A. 300mA, 2-Pole RCCB for LoadCentre KQ Distribution Board

Schneider Electric R9R81291 100A. 300mA, 2-Pole RCCB for LoadCentre KQ Distribution Board


Sale price£81.20For 1
£97.44 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Schneider Electric R9R81291 100A. 300mA, 2-Pole RCCB for LoadCentre KQ Distribution Board

Product Details

  • Product or component type: Residual current circuit breaker

  • Poles description: 2P

  • [In] rated current: 100A

  • Network type: AC

  • Earth-leakage sensitivity: 300 mA

  • Earth-leakage protection time delay: Instantaneous

  • Earth-leakage protection class: Type AC

  • Rated breaking and making capacity: Im 500 A conforming to BS EN 61008-1

  • Rated conditional short-circuit current: 6 kA

  • Network frequency: 50/60 Hz

  • [Ue] rated operational voltage: 230 V AC 50/60 Hz

  • [Ui] rated insulation voltage: 440 V

  • [Uimp] rated impulse withstand voltage: 4 kV

  • Control type: Toggle

  • Local signalling: ON/OFF indication

  • Mounting mode: Plug-in

  • Mounting support: Socket

  • 9 mm pitches: 4

  • Dimensions (HxWxD): 96 x 36 x 78mm

  • Connections - terminals
    • Tunnel type terminals (bottom) 1…35 mm ² rigid
    • Tunnel type terminals (bottom) 1…25 mm ² flexible

  • Standards: BS EN 61008

  • Mechanical durability: 5000 cycles

  • Electrical durability: 2000 cycles conforming to BS EN 61008-1

  • Wire stripping length: 14 mm for bottom connection

  • Tightening torque: 3.5 N.m bottom

  • IP degree of protection: IP20

Specification

Depth

78mm

Gtin

3606480652226

Height

96mm

Internal external

Internal

Mcbrcboincomerrccb amps

100A

No of mcbrcborcd poles

2 Poles

Product type

RCD Units

Weight

0.55

Width

36mm
