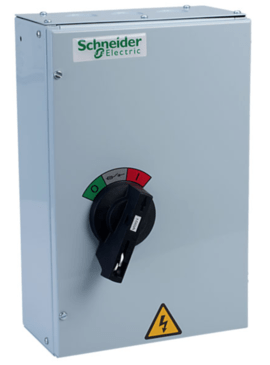

Schneider Electric SD203SFK 20A 3-Pole Twinbreak Switch Disconnector Fuse

Schneider Electric SD203SFK 20A 3-Pole Twinbreak Switch Disconnector Fuse


Sale price£105.81For 1
£126.97 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

Schneider Electric SD203SFK 20A 3-Pole Twinbreak Switch Disconnector Fuse

Product Description

Application


Heavy duty fuse products for use in commercial and industrial environments, providing isolation and traditional fuse protection for electrical loads.

Features

  • Rated for 240/415V 50/60Hz

  • Degree of protection: IP41

  • Handle position provides positive contact indication

  • Door handle prevents door being opened when switch is ON or padlocked

  • Handle padlockable in ON and OFF positions

  • Fuse links supplied as standard

Construction

  • Live terminals fully shrouded

  • Door interlock has integral defeat mechanism allowing door to be opened without switching OFF.
    This feature is not operable when the handle is padlocked

  • Removable gland plates with cable knockouts

  • Lift off door provides greater access for installation and cabling

  • Door opens within the width of the unit allowing units to be mounted adjacent

  • Neutral has disconnectable link and capacity for 3 outgoing cables

  • Keyhole slots in the enclosure base allow easy installation

  • Earthing kit provided as standard

  • Easy access to fuse links

  • Steelwork finished in polyester epoxy powder

Product Details

  • Standard: BS EN 60947-3

  • Rated operational voltage: 415V 50/60Hz

  • Rating: 20A

  • Rated current at 400C, A: 20

  • Rated impulse voltage: 6kV

  • Rated short time withstand Icw, A: 416

  • Rated short circuit making capacity Icm: 1.35kA

  • Rated short circuit breaking capacity Icn: 50kA

  • Kilowatt rating: 11kW

  • Cable size, maximum mm ²: 10mm ²

Specification

Gtin

5018934665061

Product type

Switch & Fusegear
