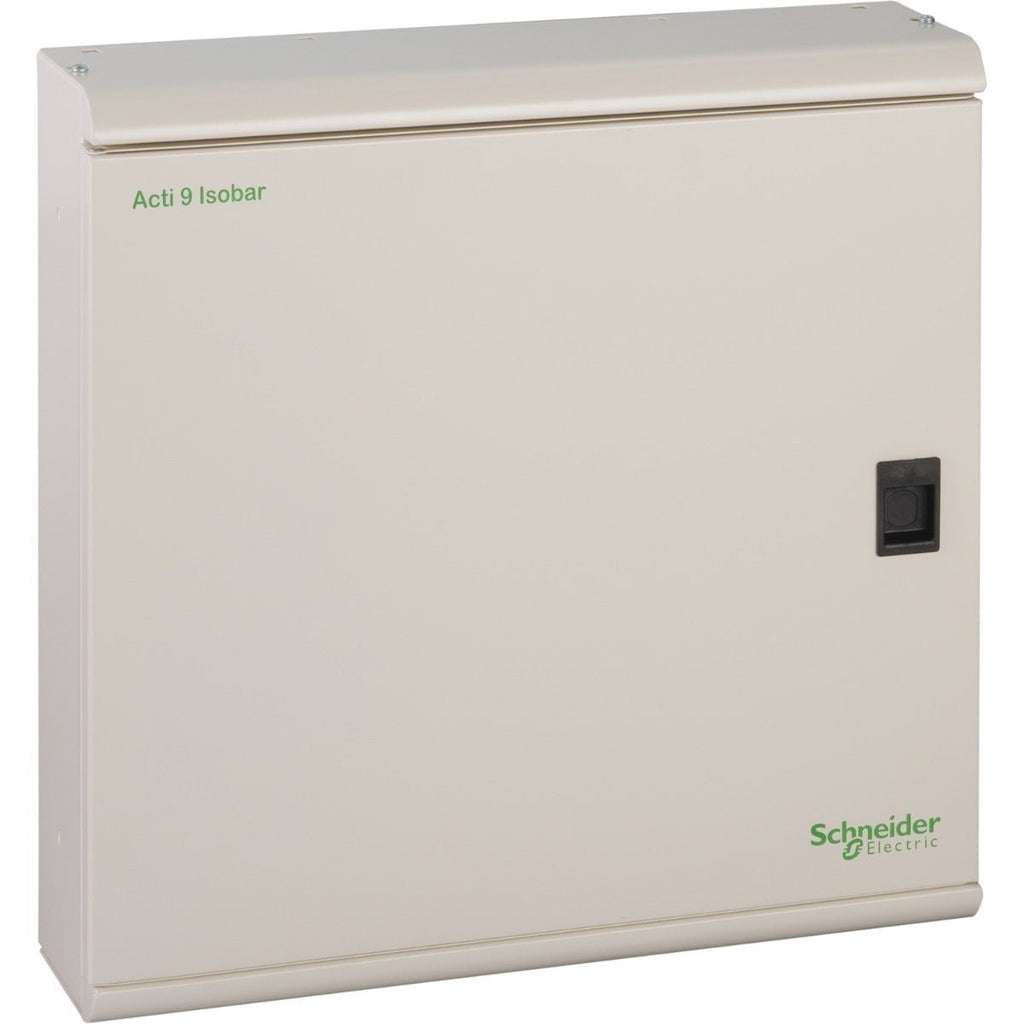

Product details

• Contents:
  • Earth stud

  • Enclosure

  • Door

  • Front cover

  • Pan assembly

  • Neutral terminal block

  • Earth terminal block

  • Removable gland plates

  • Blanking plate

• enclosure mounting: Surface


• number of poles : 3P + N


• [Ie] rated operational current:
  • 250 A at 400/415 V AC

  • 250 A at 230/240 V AC


• breaking capacity: 25 kA


• overvoltage category: IV


• [Ui] rated insulation voltage: 500 V


• [Uimp] rated impulse withstand voltage: 6 kV


• incomer device options:

  • Switch disconnector - 3P + N

  • Switch disconnector - 4P

  • MCCB - 4P

  • Terminal block - 4P

  • Contactor - 4P

  • RCCB - 4P


• protection device options:

  • Miniature circuit breaker (MCB) in outgoer

  • Residual current circuit breaker with overcurrent protection (RCBO) in outgoer


• number of ways: 6 ways (3P) outgoer


• enclosure material: Steel


• surface treatment: Epoxy


• surface finish: Powder paint


• Dimensions:
  • height: 484 mm

  • width: 470 mm

  • depth: 139 mm


• net weight: 10.5 kg


• standards: BS EN 61439-3


• IP degree of protection:

  • IP2x without cover internal conforming to BS EN 60529

  • IP3x with cover external conforming to BS EN 60529
